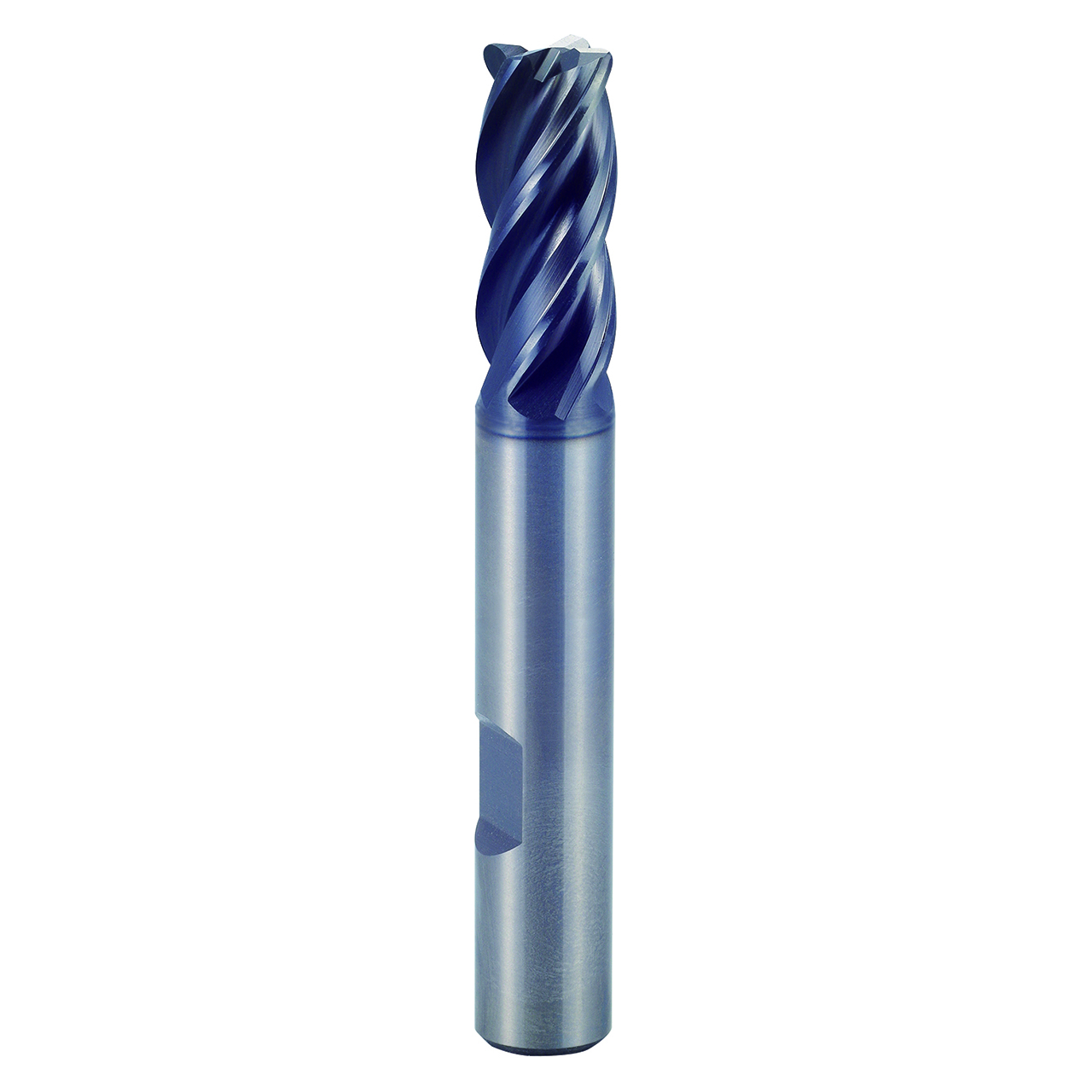

Product Specifications
| Manufacturer Part Number | GMF55917 |
| Diameter (Inch) | 37/47" |
| Diameter (Decimal Inch) | 0.7874" |
| Diameter (mm) | 20.00mm |
| Shank Diameter (Inch) | 37/47" |
| Shank Diameter (Decimal Inch) | 0.7874" |
| Shank Diameter (mm) | 20.00mm |
| Length of Cut (Inch) | 1-2/85" |
| Length of Cut (Decimal Inch) | 1.0236" |
| Length of Cut (mm) | 26.00mm |
| Overall Length (Inch) | 3-28/45" |
| Overall Length (Decimal Inch) | 3.6220" |
| Overall Length (mm) | 92.00mm |
| Corner Radius (Inch) | 2/17" |
| Corner Radius (Decimal Inch) | 0.1181" |
| Corner Radius (mm) | 3.00mm |
| Number of Flutes | 4 |
| Helix Angle | Variable |
| Series | GMF55 |
| Shank Style | Flat |
| Coating | Y-Coated |
| Material | Carbide |
| Cut Type | Center |
| Cutting Direction | Right |
| Length Type | Standard Length |
| Application | P, M, K, S |
