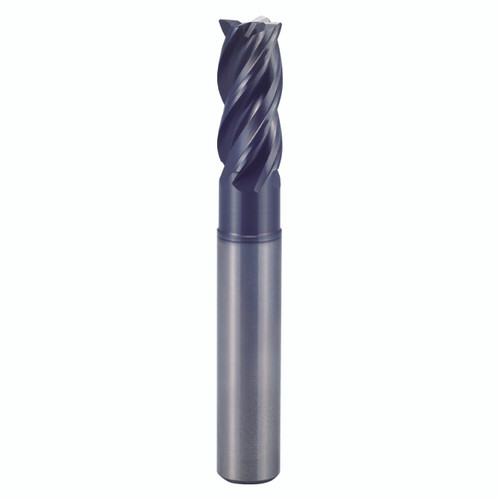

| Manufacturer Part Number | GMF60160 |
| Diameter (Inch) | 17/27" |
| Diameter (Decimal Inch) | 0.6299" |
| Diameter (mm) | 16.00mm |
| Shank Diameter (Inch) | 17/27" |
| Shank Diameter (Decimal Inch) | 0.6299" |
| Shank Diameter (mm) | 16.00mm |
| Length of Cut (Inch) | 13/15" |
| Length of Cut (Decimal Inch) | 0.8661" |
| Length of Cut (mm) | 22.00mm |
| Overall Length (Inch) | 3-28/45" |
| Overall Length (Decimal Inch) | 3.6220" |
| Overall Length (mm) | 92.00mm |
| Number of Flutes | 4 |
| Helix Angle | Variable |
| Series | GMF60 |
| Shank Style | Plain |
| Coating | Y-Coated |
| Material | Carbide |
| Cut Type | Center |
| Cutting Direction | Right |
| Length Type | Extended Length |
| Application | P, M, K, S |
