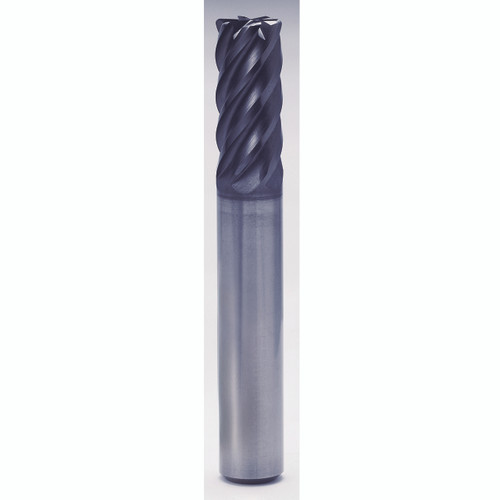

Product Specifications
| Manufacturer Part Number | GMG16914 |
| Diameter (Inch) | 37/47" |
| Diameter (Decimal Inch) | 0.7874" |
| Diameter (mm) | 20.00mm |
| Shank Diameter (Inch) | 37/47" |
| Shank Diameter (Decimal Inch) | 0.7874" |
| Shank Diameter (mm) | 20.00mm |
| Length of Cut (Inch) | 1-1/2" |
| Length of Cut (Decimal Inch) | 1.4961" |
| Length of Cut (mm) | 38.00mm |
| Overall Length (Inch) | 4-5/53" |
| Overall Length (Decimal Inch) | 4.0945" |
| Overall Length (mm) | 104.00mm |
| Corner Radius (Inch) | 3/38" |
| Corner Radius (Decimal Inch) | 0.0787" |
| Corner Radius (mm) | 2.00mm |
| Number of Flutes | 6 |
| Helix Angle | Variable |
| Series | GMG16 |
| Shank Style | Plain |
| Coating | Y-Coated |
| Material | Carbide |
| Cut Type | Center |
| Cutting Direction | Right |
| Length Type | Standard Length |
| Application | P, M, S |
