Product Specifications

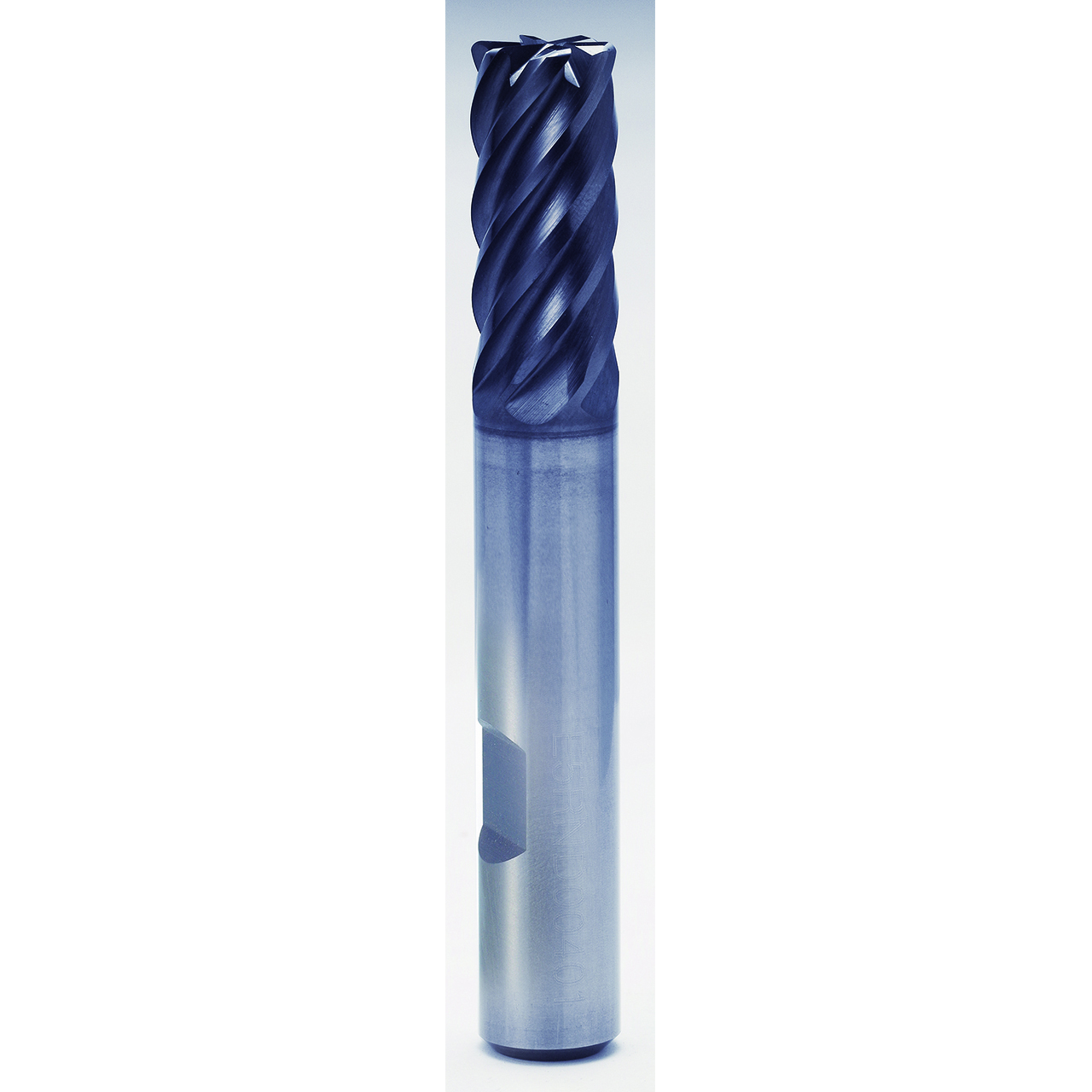

| Manufacturer Part Number | GMG19060 |
| Diameter (Inch) | 13/55" |
| Diameter (Decimal Inch) | 0.2362" |
| Diameter (mm) | 6.00mm |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Inch) | 17/18" |
| Length of Cut (Decimal Inch) | 0.9449" |
| Length of Cut (mm) | 24.00mm |
| Overall Length (Inch) | 2-20/21" |
| Overall Length (Decimal Inch) | 2.9528" |
| Overall Length (mm) | 75.00mm |
| Corner Radius (Inch) | 1/51" |
| Corner Radius (Decimal Inch) | 0.0197" |
| Corner Radius (mm) | 0.50mm |
| Number of Flutes | 6 |
| Helix Angle | Variable |
| Series | GMG19 |
| Shank Style | Flat |
| Coating | Y-Coated |
| Material | Carbide |
| Cut Type | Center |
| Cutting Direction | Right |
| Length Type | Standard Length |
| Application | P, M, S |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Cutting Direction:
Right
interval quantity:
1
