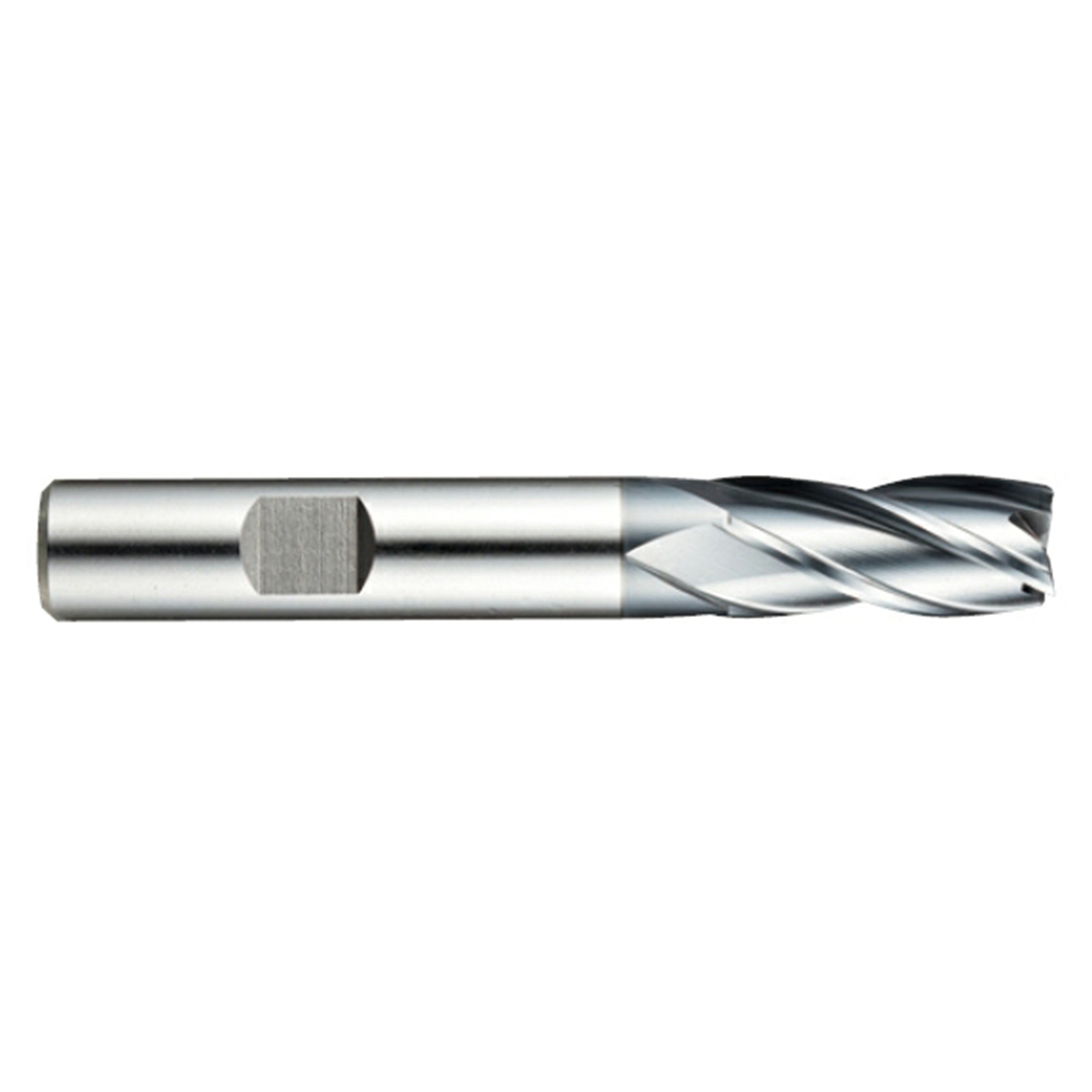

| Manufacturer Part Number | GYG66040 |
| Mill Diameter (Decimal Inch) | 0.6250" |
| Mill Diameter (Inch) | 5/8" |
| Mill Diameter (mm) | 15.88mm |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (mm) | 15.88mm |
| Length of Cut (Decimal Inch) | 1.6250" |
| Length of Cut (Inch) | 1-5/8" |
| Length of Cut (mm) | 41.28mm |
| Overall Length (Decimal Inch) | 3.7500" |
| Overall Length (Inch) | 3-3/4" |
| Overall Length (mm) | 95.25mm |
| Series | GYG66 |
| Number of Flutes | 4 |
| Helix Angle | Variable |
| Coating | ALCrN |
| Material | PM60 |
| Shank Style | Flat |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Application | P, M, K |
| Cutting Direction | Right Hand |
| Product Type | Square End Mill |
