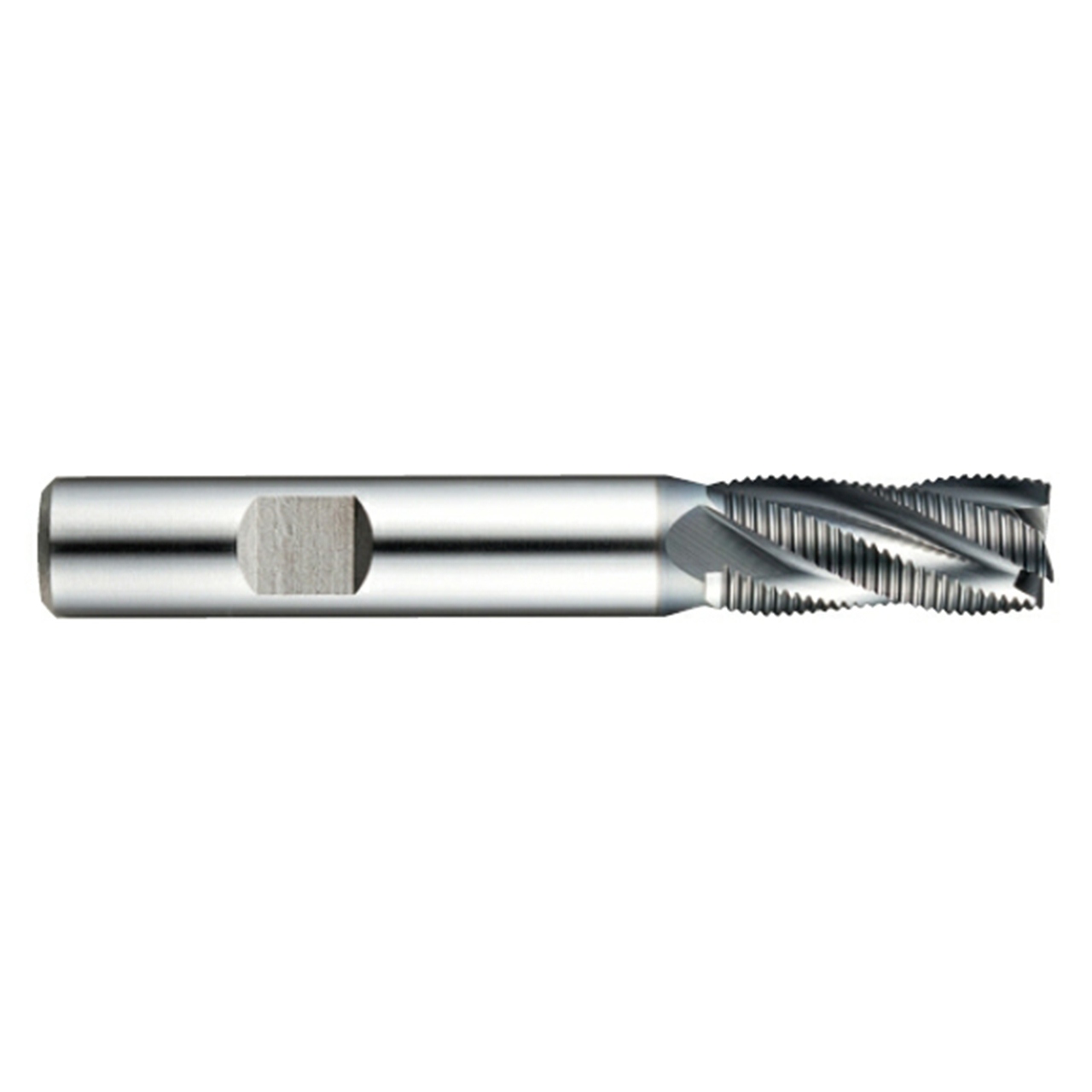

Product Specifications
| EDP Number | GYG68064 |
| Diameter (Decimal Inch) | 1.0000" |
| Diameter (Inch) | 1" |
| Diameter (mm) | 25.40mm |
| Shank Diameter (Decimal Inch) | 1.0000" |
| Shank Diameter (Inch) | 1" |
| Shank Diameter (mm) | 25.40mm |
| Length of Cut (Decimal Inch) | 2.0000" |
| Length of Cut (Inch) | 2" |
| Length of Cut (mm) | 50.80mm |
| Overall Length (Decimal Inch) | 4.5000" |
| Overall Length (Inch) | 4-1/2" |
| Overall Length (mm) | 114.30mm |
| Series | GYG68 |
| No of Flutes | 5 |
| Helix Angle | Variable |
| Coating | ALCrN |
| Material | PM60 |
| Shank Style | Flat |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Application | P, M, K |
| Cutting Direction | Right Hand |
| Product Type | Roughing End Mill |
