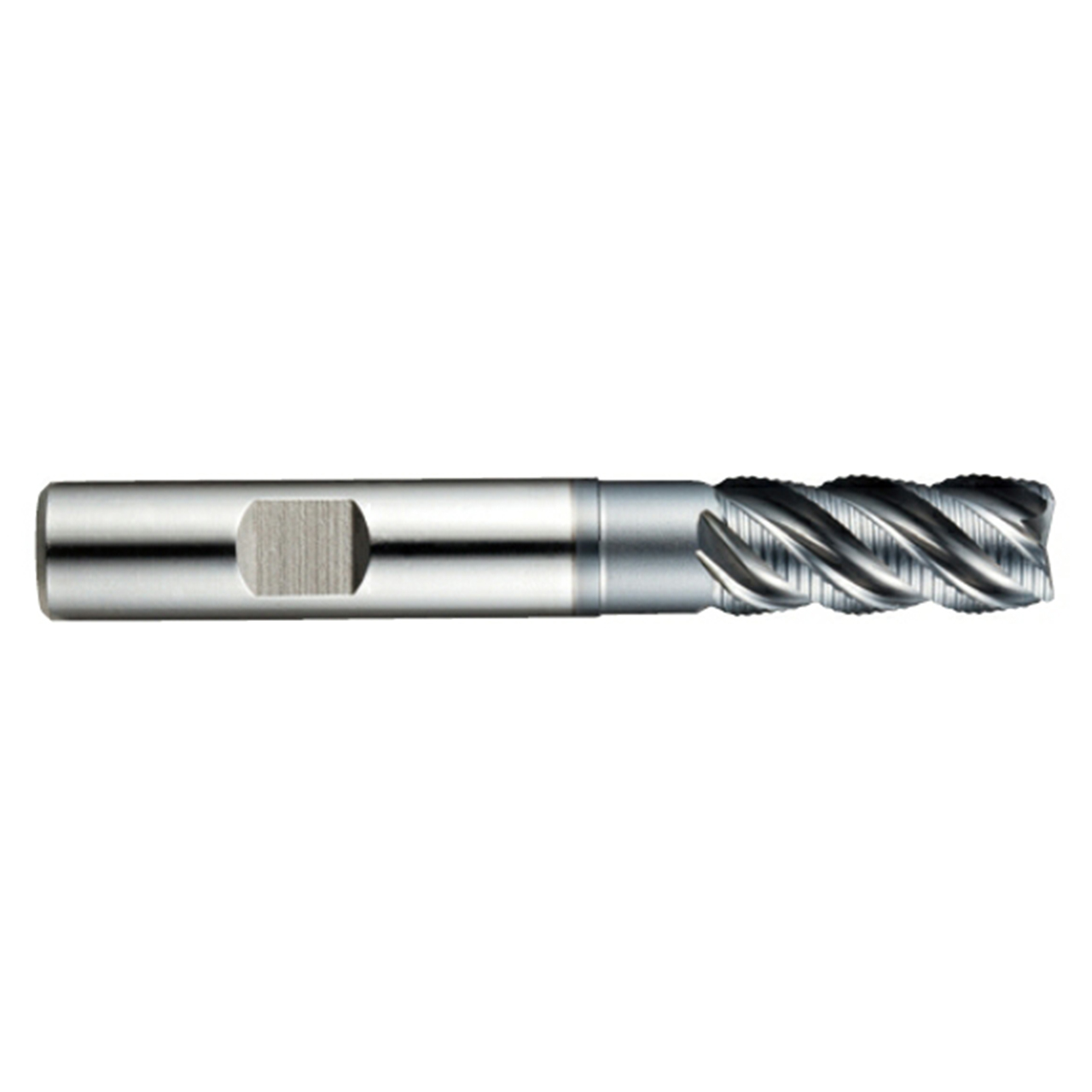

Product Specifications
| EDP Number | GYG69020 |
| Diameter (Decimal Inch) | 0.3125" |
| Diameter (Inch) | 5/16" |
| Diameter (mm) | 7.94mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Decimal Inch) | 0.7500" |
| Length of Cut (Inch) | 3/4" |
| Length of Cut (mm) | 19.05mm |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (mm) | 63.50mm |
| Corner Radius (Decimal Inch) | 0.0200" |
| Corner Radius (Inch) | 1/50" |
| Corner Radius (mm) | 0.51mm |
| Series | GYG69 |
| No of Flutes | 4 |
| Helix Angle | Variable |
| Coating | ALCrN |
| Material | PM60 |
| Shank Style | Flat |
| Cut Type | Center Cut |
| Corner Type | Corner Radius |
| Application | P, M, K |
| Cutting Direction | Right Hand |
| Product Type | Corner Radius End Mill |
