YG1 HPI89009 | 1/28" Diameter x 3/19" Shank x 1/36" LOC x 1-71/92" OAL x 0.004" Radius x 35 Degree Helix Angle 2 Flute C- Coated Carbide Corner Radius End Mill

$61.33 $41.39
(You save $19.94)
Brand:
YG1
Length of Cut (Inch):
1/36"
Length of Cut (Decimal Inch):
0.0280"
Length of Cut (mm):
0.70mm
Overall Length (Inch):
1-71/92"
Overall Length (Decimal Inch):
1.7710"
Overall Length (mm):
45.00mm
Number of Flutes:
2
Material:
Carbide
Cutting Direction:
Right Hand
Finish/Coating:
C-Coating
interval quantity:
1
SKU:
25293389
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
YG1 HPI89009 | 1/28" Diameter x 3/19" Shank x 1/36" LOC x 1-71/92" OAL x 0.004" Radius x 35 Degree Helix Angle 2 Flute C- Coated Carbide Corner Radius End Mill

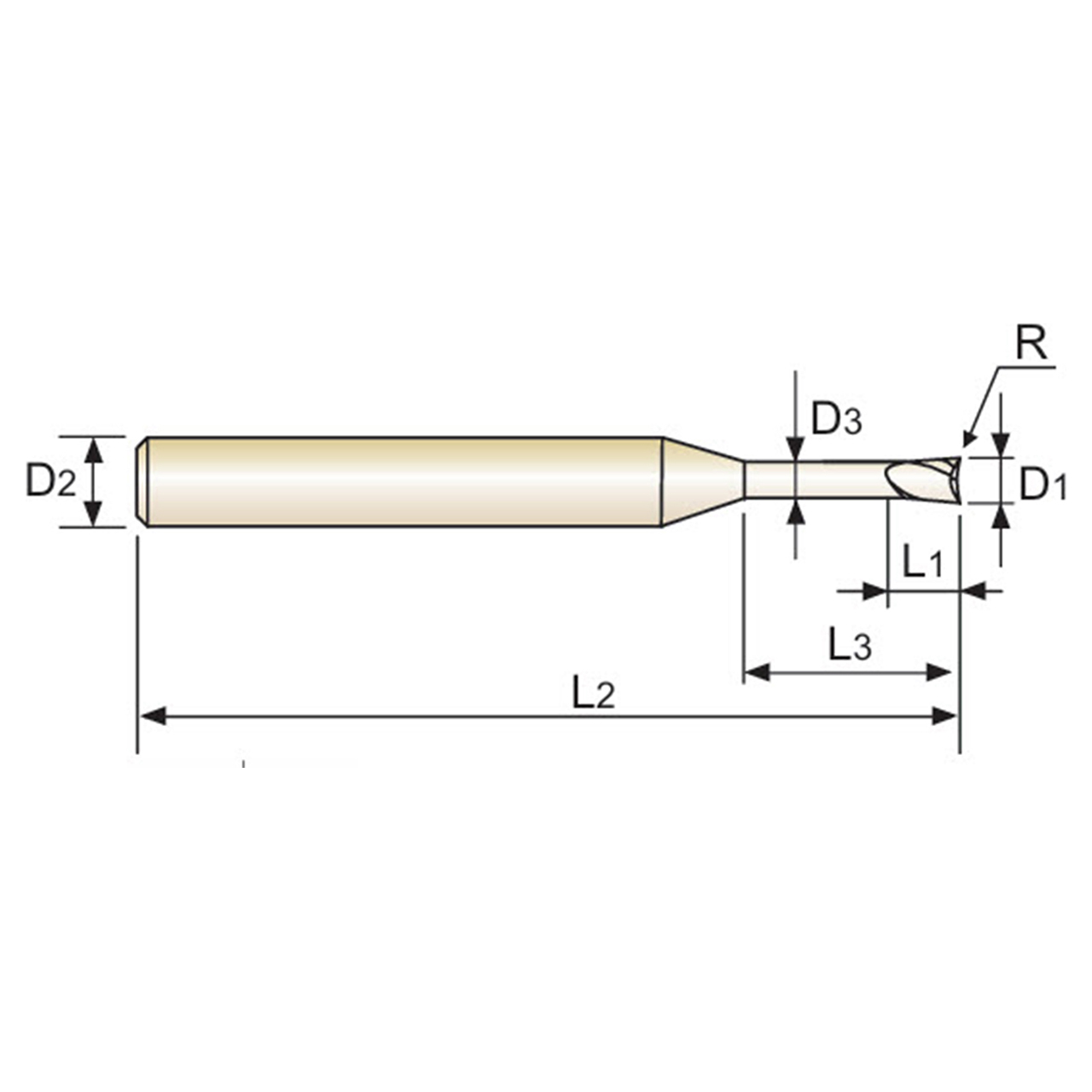

Product Specifications
Manufacturer Part NumberHPI89009
Number of Flutes2
Diameter (Decimal Inch)0.035"
Diameter (Inch)1/28"
Diameter (mm)0.90mm
Shank Diameter (Decimal Inch)0.157"
Shank Diameter (Inch)3/19"
Shank Diameter (mm)4.00mm
Length of Cut (Decimal Inch)0.028"
Length of Cut (Inch)1/36"
Length of Cut (mm)0.70mm
Overall Length (Decimal Inch)1.771"
Overall Length (Inch)1-71/92"
Overall Length (mm)45.00mm
Shank TypePlain
Helix Angle35 Degree
Coating ProcessC-Coated
MaterialCarbide
Cut TypeCenter
Cutting DirectionRight Hand
Product TypeCorner Radius End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
YG1
Length of Cut (Inch):
1/36"
Length of Cut (Decimal Inch):
0.0280"
Length of Cut (mm):
0.70mm
Overall Length (Inch):
1-71/92"
Overall Length (Decimal Inch):
1.7710"
Overall Length (mm):
45.00mm
Number of Flutes:
2
Material:
Carbide
Cutting Direction:
Right Hand
Finish/Coating:
C-Coating
interval quantity:
1
