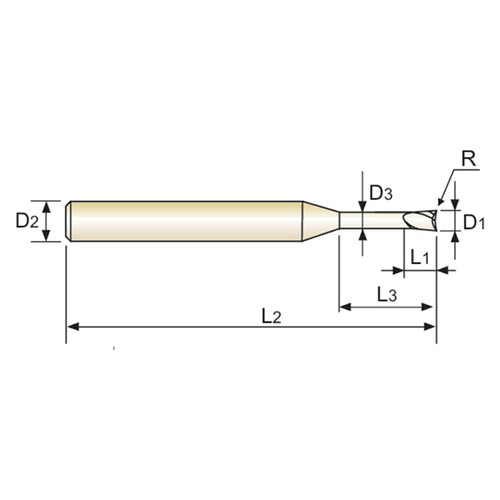

| Manufacturer Part Number | HPI89897 |
| Diameter (Inch) | 13/55" |
| Diameter (Decimal Inch) | 0.236" |
| Diameter (mm) | 6.00mm |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (Decimal Inch) | 0.236" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Inch) | 12/61" |
| Length of Cut (Decimal Inch) | 0.197" |
| Length of Cut (mm) | 5.00mm |
| LBS (Inch) | 2-1/6" |
| LBS (Decimal Inch) | 2.165" |
| LBS (mm) | 55.00mm |
| Overall Length (Inch) | 3-15/16" |
| Overall Length (Decimal Inch) | 3.937" |
| Overall Length (mm) | 100.00mm |
| Neck Diameter (mm) | 5.85mm |
| Corner Radius (Decimal Inch) | 0.004" |
| Number of Flutes | 2 |
| Series | HPI89 |
| Shank Type | Plain |
| Helix Angle (Degree) | 35 Degree |
| Coating | C |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Cut Type | Center |
| Product Type | Corner Radius End Mill |
