| Manufacturer Part Number | HPI91922 |
| Number of Flutes | 2 |
| Diameter (Decimal Inch) | 0.012" |
| Diameter (Inch) | 1/85" |
| Diameter (mm) | 0.30mm |
| Shank Diameter (Decimal Inch) | 0.157" |
| Shank Diameter (Inch) | 3/19" |
| Shank Diameter (mm) | 4.00mm |
| Length of Cut (Decimal Inch) | 0.008" |
| Length of Cut (Inch) | 1/127" |
| Length of Cut (mm) | 0.20mm |
| Overall Length (Decimal Inch) | 1.771" |
| Overall Length (Inch) | 1-71/92" |
| Overall Length (mm) | 45.00mm |
| Ball Nose Radius (Decimal Inch) | 0.005" |
| Ball Nose Radius (mm) | 0.15mm |
| Shank Type | Plain |
| Helix Angle | 30 Degree |
| Coating Process | C-Coated |
| Material | Carbide |
| Cut Type | Center |
| Cutting Direction | Right Hand |

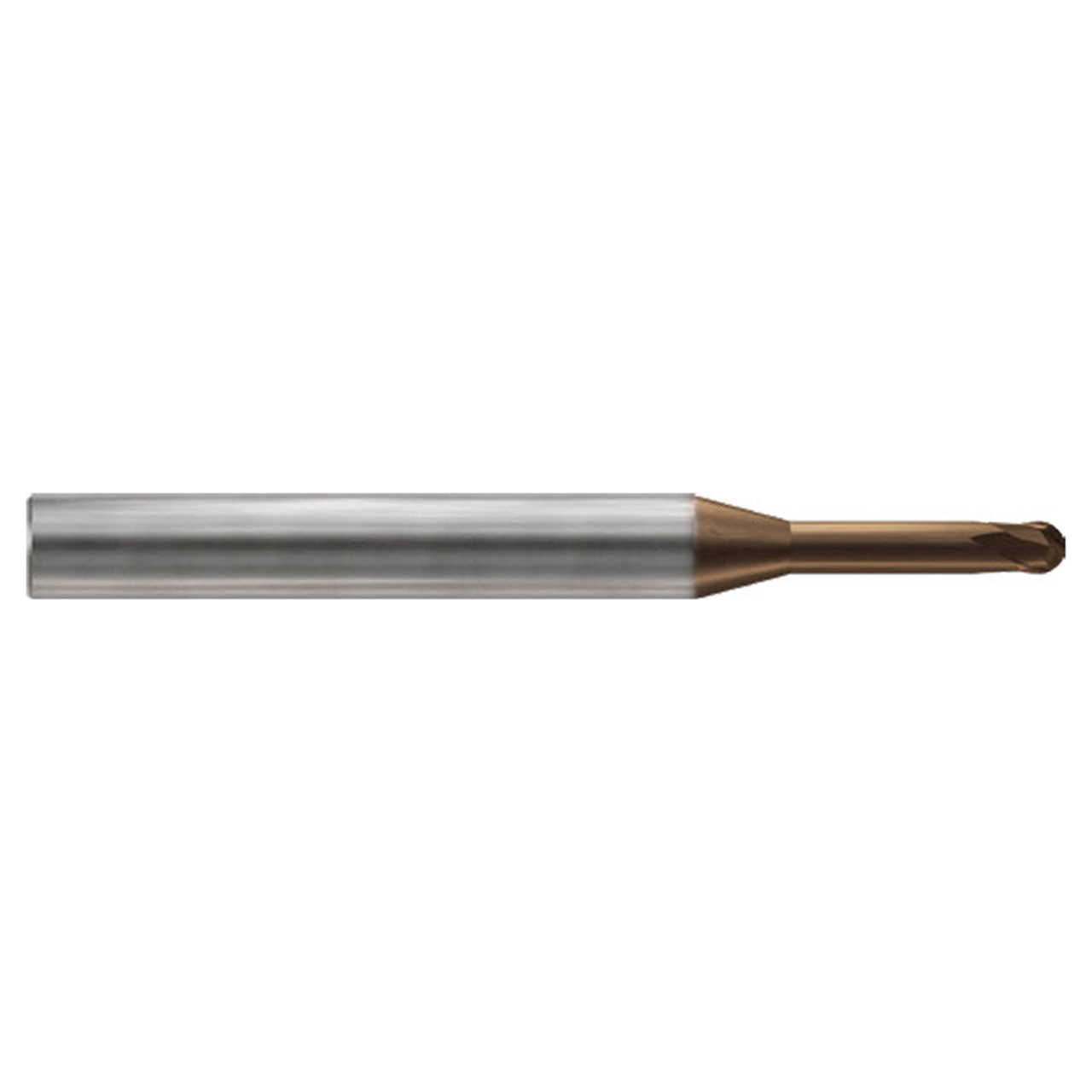

| Product Type | Ball Nose End Mill |
