| Manufacturer Part Number | HPI92715 |
| Number of Flutes | 2 |
| Diameter (Decimal Inch) | 0.236" |
| Diameter (mm) | 6.00mm |
| Shank Diameter (Decimal Inch) | 0.393" |
| Shank Diameter (mm) | 10.00mm |
| Length of Cut (Decimal Inch) | 0.472" |
| Length of Cut (mm) | 12.00mm |
| Overall Length (Decimal Inch) | 7.874" |
| Overall Length (mm) | 200.00mm |
| Ball Nose Radius (Decimal Inch) | 0.118" |
| Ball Nose Radius (mm) | 3.00mm |
| Shank Type | Plain |
| Helix Angle | 30 Degree |
| Coating Process | C-Coated |
| Material | Carbide |
| Cut Type | Center |
| Cutting Direction | Right Hand |

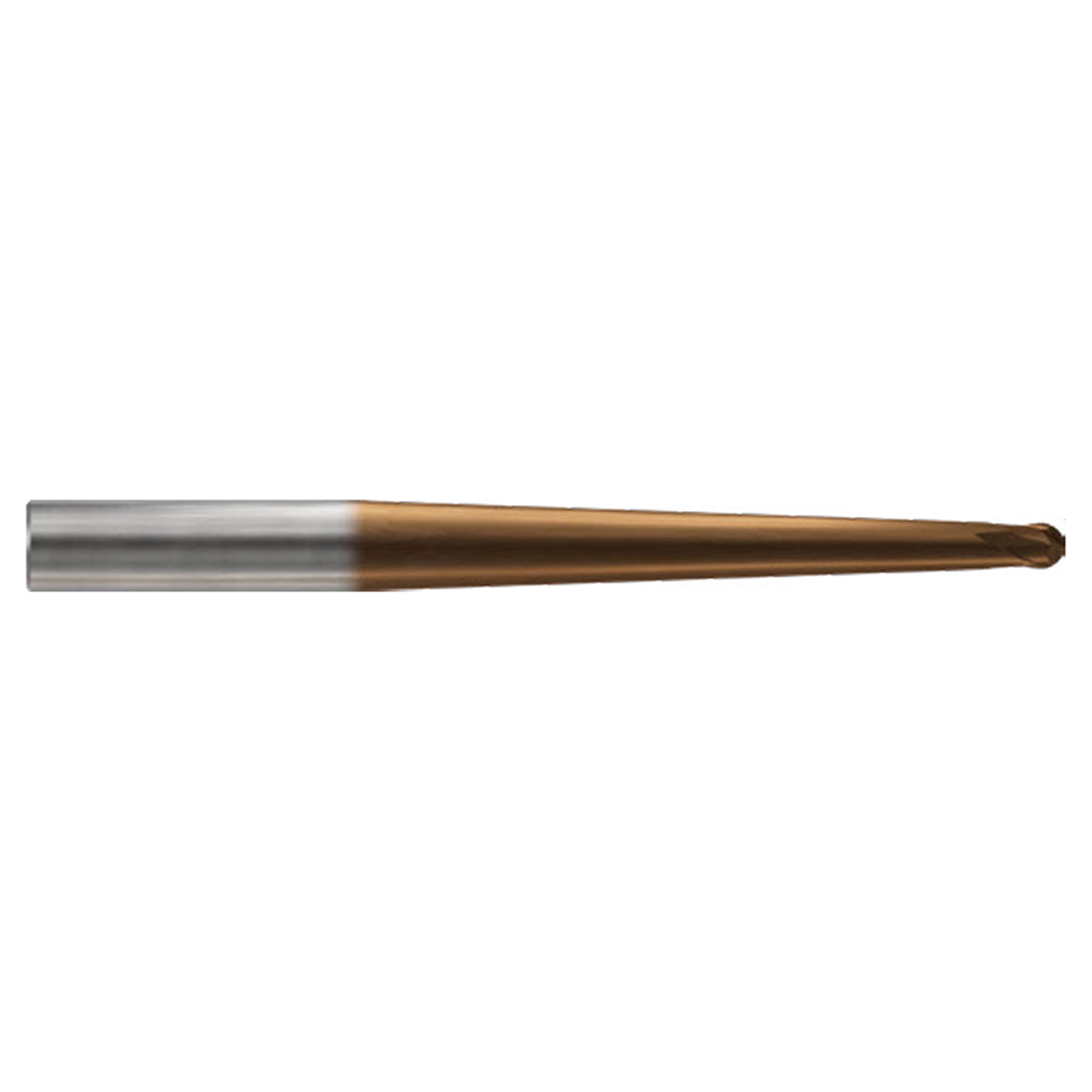

| Product Type | Taper Neck Ball Nose End Mill |
