Product Specifications
| Manufacturer Part Number | HPI92845 |
| Number of Flutes | 2 |
| Diameter (Decimal Inch) | 0.079" |
| Diameter (mm) | 2.00mm |
| Shank Diameter (Decimal Inch) | 0.236" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Decimal Inch) | 0.059" |
| Length of Cut (mm) | 1.50mm |
| Overall Length (Decimal Inch) | 3.149" |
| Overall Length (mm) | 80.00mm |
| Ball Nose Radius (Decimal Inch) | 0.039" |
| Ball Nose Radius (mm) | 1.00mm |
| Shank Type | Plain |
| Helix Angle | 30 Degree |
| Coating Process | C-Coated |
| Material | Carbide |
| Cut Type | Center |
| Cutting Direction | Right Hand |

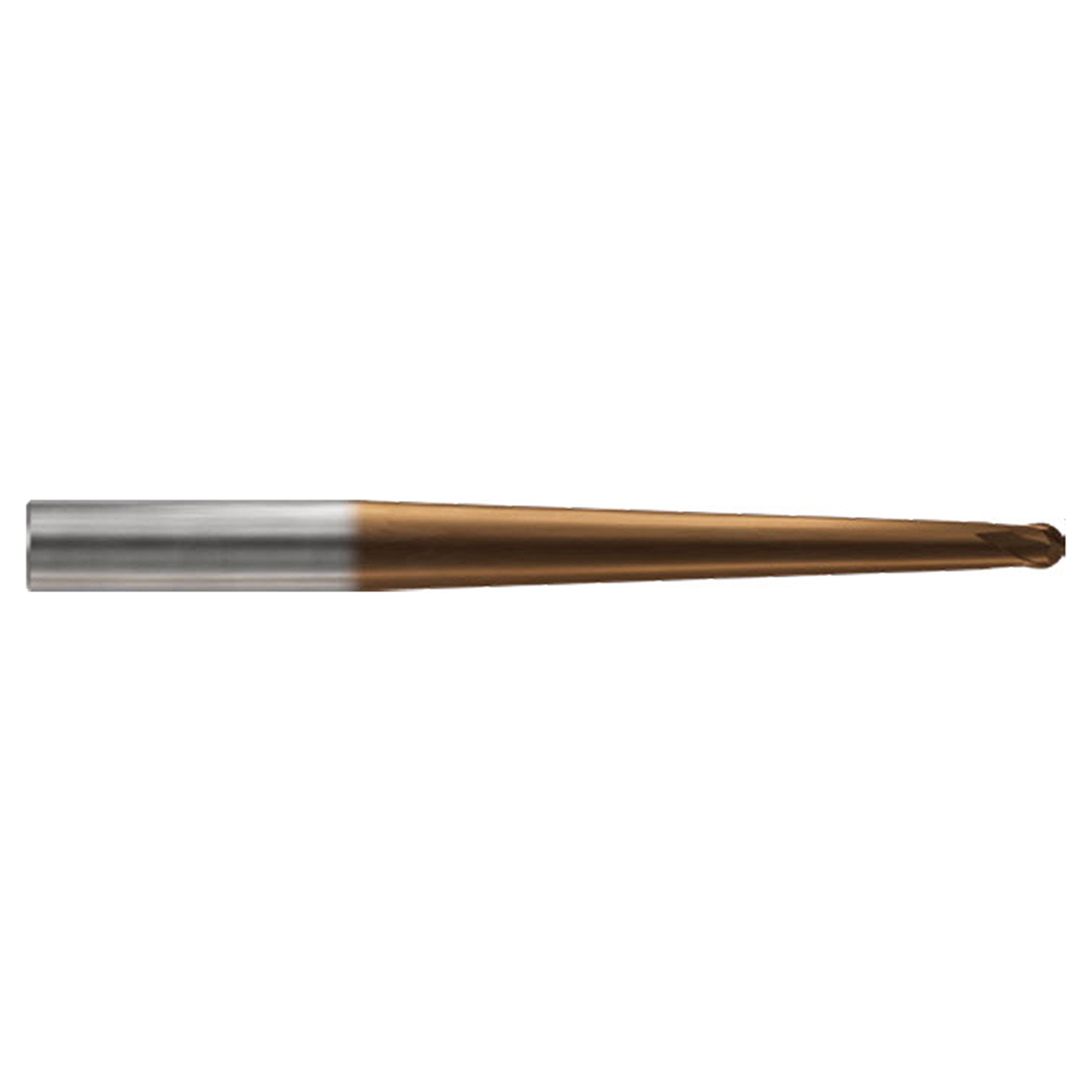

| Product Type | Taper Neck Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Cutting Diameter (Decimal Inch):
0.0790"
Cutting Diameter (mm):
2.00mm
Shank Diameter (Decimal Inch):
0.2360"
Shank Diameter (mm):
6.00mm
Length of Cut (Decimal Inch):
0.0590"
Length of Cut (mm):
1.50mm
Overall Length (Decimal Inch):
3.1490"
Overall Length (mm):
80.00mm
Number of Flutes:
2
Shank Style:
Plain
Material:
Carbide
Cutting Direction:
Right Hand
Helix Angle:
30 Degree
Finish/Coating:
C-Coating
