Product Specifications
| Manufacturer Part Number | HPI92893 |
| Number of Flutes | 2 |
| Diameter (Decimal Inch) | 0.472" |
| Diameter (mm) | 12.00mm |
| Shank Diameter (Decimal Inch) | 0.629" |
| Shank Diameter (mm) | 16.00mm |
| Length of Cut (Decimal Inch) | 0.866" |
| Length of Cut (mm) | 22.00mm |
| Overall Length (Decimal Inch) | 6.299" |
| Overall Length (mm) | 160.00mm |
| Ball Nose Radius (Decimal Inch) | 0.236" |
| Ball Nose Radius (mm) | 6.00mm |
| Shank Type | Plain |
| Helix Angle | 30 Degree |
| Coating Process | C-Coated |
| Material | Carbide |
| Cut Type | Center |
| Cutting Direction | Right Hand |

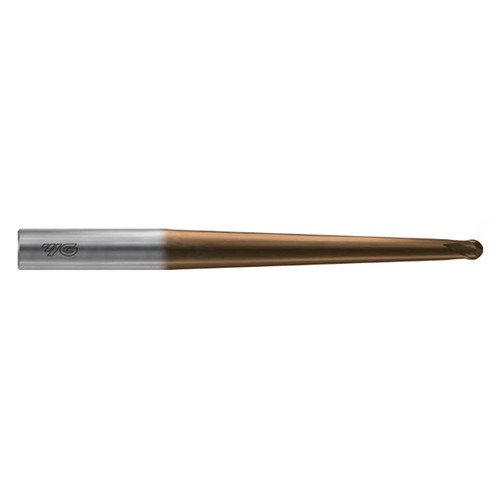

| Product Type | Taper Neck Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Length of Cut (Inch):
13/15"
Length of Cut (Decimal Inch):
0.8660"
Length of Cut (mm):
22.00mm
Overall Length (Inch):
6-3/10"
Overall Length (Decimal Inch):
6.2990"
Overall Length (mm):
160.00mm
Number of Flutes:
2
Material:
Carbide
Cutting Direction:
Right Hand
Helix Angle:
30 Degree
Finish/Coating:
C-Coating
interval quantity:
1
