| Manufacturer Part Number | HPI92899 |
| Number of Flutes | 2 |
| Diameter (Decimal Inch) | 0.197" |
| Diameter (Inch) | 12/61" |
| Diameter (mm) | 5.00mm |
| Shank Diameter (Decimal Inch) | 0.315" |
| Shank Diameter (Inch) | 23/73" |
| Shank Diameter (mm) | 8.00mm |
| Length of Cut (Decimal Inch) | 0.394" |
| Length of Cut (Inch) | 37/94" |
| Length of Cut (mm) | 10.00mm |
| Overall Length (Decimal Inch) | 4.330" |
| Overall Length (Inch) | 4-1/3" |
| Overall Length (mm) | 110.00mm |
| Ball Nose Radius (Decimal Inch) | 0.098" |
| Ball Nose Radius (mm) | 2.50mm |
| Shank Type | Plain |
| Helix Angle | 30 Degree |
| Coating Process | C-Coated |
| Material | Carbide |
| Cut Type | Center |
| Cutting Direction | Right Hand |

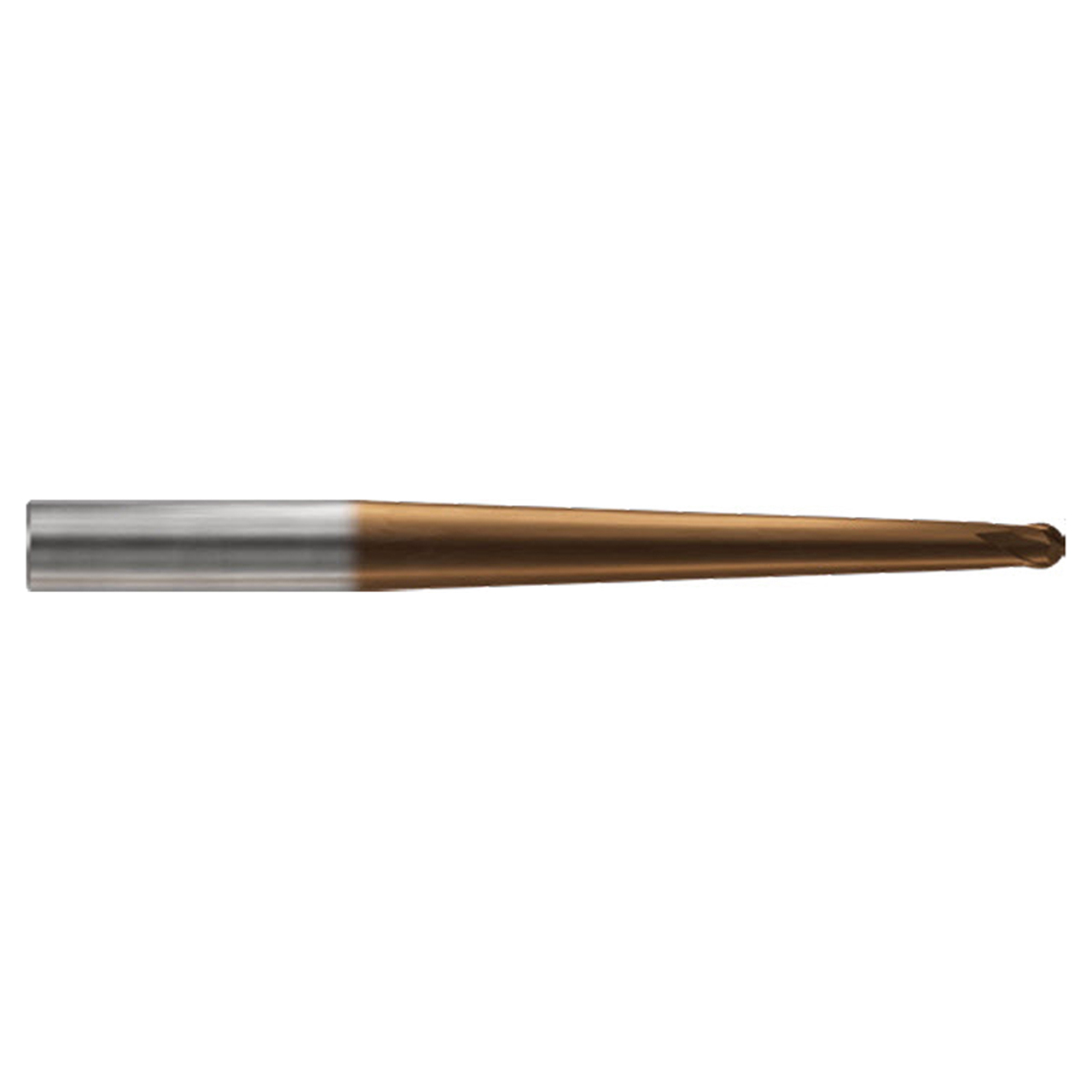

| Product Type | Taper Neck Ball Nose End Mill |
