| Manufacturer Part Number | HPK19007 |
| Diameter (Inch) | 1/36" |
| Diameter (Decimal Inch) | 0.028" |
| Diameter (mm) | 0.70mm |
| Shank Diameter (Inch) | 3/19" |
| Shank Diameter (Decimal Inch) | 0.157" |
| Shank Diameter (mm) | 4.00mm |
| Length of Cut (Inch) | 1/18" |
| Length of Cut (Decimal Inch) | 0.055" |
| Length of Cut (mm) | 1.40mm |
| LBS (Inch) | 3/38" |
| LBS (Decimal Inch) | 0.079" |
| LBS (mm) | 2.00mm |
| Overall Length (Inch) | 1-23/40" |
| Overall Length (Decimal Inch) | 1.575" |
| Overall Length (mm) | 40.00mm |
| Neck Diameter (mm) | 0.65mm |
| Interferance Angle (Degree) | 11.31 Degree |
| Number of Flutes | 2 |
| Series | HPK19 |
| Shank Type | Plain |
| Helix Angle (Degree) | 35 Degree |
| Coating | C |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Cut Type | Center |

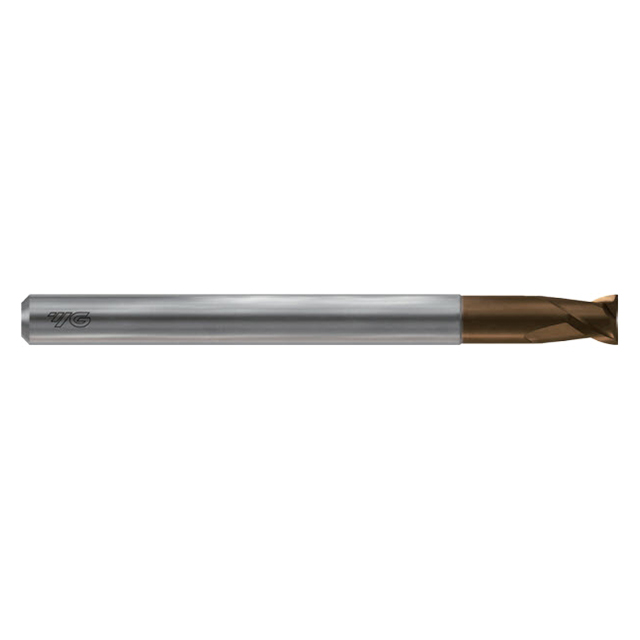

| Product Type | Square End Mill-Extended Neck |
