| Manufacturer Part Number | HPK45993 |
| Diameter (Inch) | 3/95" |
| Diameter (Decimal Inch) | 0.031" |
| Diameter (mm) | 0.80mm |
| Shank Diameter (Inch) | 3/19" |
| Shank Diameter (Decimal Inch) | 0.157" |
| Shank Diameter (mm) | 4.00mm |
| Length of Cut (Inch) | 3/95" |
| Length of Cut (Decimal Inch) | 0.031" |
| Length of Cut (mm) | 0.80mm |
| LBS (Inch) | 3/38" |
| LBS (Decimal Inch) | 0.079" |
| LBS (mm) | 2.00mm |
| Overall Length (Inch) | 1-17/45" |
| Overall Length (Decimal Inch) | 1.378" |
| Overall Length (mm) | 35.00mm |
| Ball Nose (Decimal Inch) | 0.016" |
| Ball Nose (Inch) | 0.40mm |
| Neck Diameter (mm) | 0.75mm |
| Interferance Angle (Degree) | 11.79 Degree |
| Number of Flutes | 2 |
| Series | HPK45 |
| Shank Type | Plain |
| Helix Angle (Degree) | 30 Degree |
| Coating | C |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Cut Type | Center |

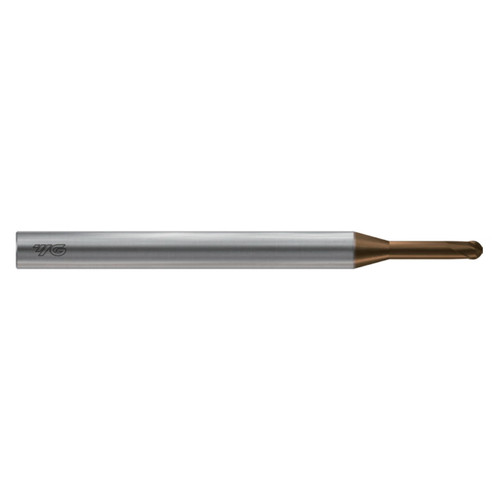

| Product Type | Ball Nose End Mill |
