| Manufacturer Part Number | HPK47712 |
| Diameter (Inch) | 13/55" |
| Diameter (Decimal Inch) | 0.236" |
| Diameter (mm) | 6.00mm |
| Shank Diameter (Inch) | 37/94" |
| Shank Diameter (Decimal Inch) | 0.394" |
| Shank Diameter (mm) | 10.00mm |
| Length of Cut (Inch) | 43/91" |
| Length of Cut (Decimal Inch) | 0.472" |
| Length of Cut (mm) | 12.00mm |
| LBS (Inch) | 2-65/86" |
| LBS (Decimal Inch) | 2.756" |
| LBS (mm) | 70.00mm |
| Overall Length (Inch) | 4-71/98" |
| Overall Length (Decimal Inch) | 4.724" |
| Overall Length (mm) | 120.00mm |
| Ball Nose (Decimal Inch) | 0.118" |
| Ball Nose (Inch) | 3.00mm |
| Neck Diameter (mm) | 5.85mm |
| Under Neck Parallel Length (mm) | 15.00mm |
| Neck Taper Angle (Degeee) | 1.00 Degree |
| Interferance Angle (Degree) | 1.61 Degree |
| Number of Flutes | 2 |
| Series | HPK47 |
| Shank Type | Plain |
| Helix Angle (Degree) | 30 Degree |
| Coating | C |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Cut Type | Center |

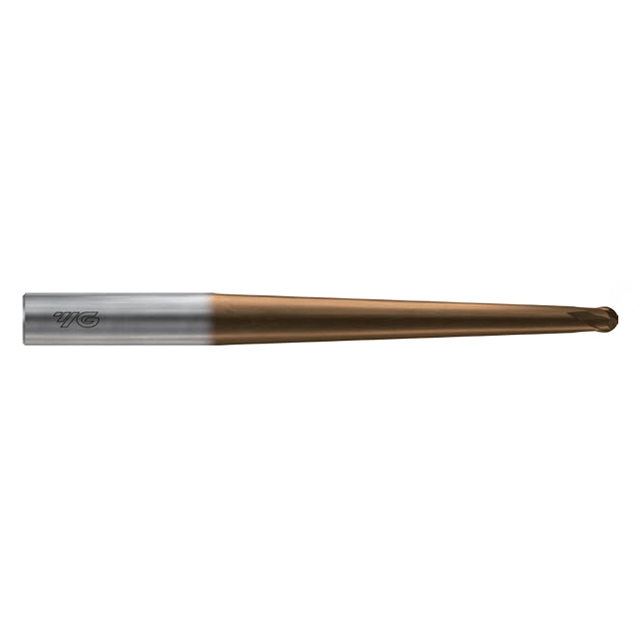

| Product Type | Ball Nose End Mill-Taper Neck |
