| Manufacturer Part Number | HPK47888 |
| Diameter (Inch) | 37/94" |
| Diameter (Decimal Inch) | 0.394" |
| Diameter (mm) | 10.00mm |
| Shank Diameter (Inch) | 43/91" |
| Shank Diameter (Decimal Inch) | 0.472" |
| Shank Diameter (mm) | 12.00mm |
| Length of Cut (Inch) | 17/24" |
| Length of Cut (Decimal Inch) | 0.709" |
| Length of Cut (mm) | 18.00mm |
| LBS (Inch) | 2-52/93" |
| LBS (Decimal Inch) | 2.559" |
| LBS (mm) | 65.00mm |
| Overall Length (Inch) | 5-23/73" |
| Overall Length (Decimal Inch) | 5.315" |
| Overall Length (mm) | 135.00mm |
| Ball Nose (Decimal Inch) | 0.197" |
| Ball Nose (Inch) | 5.00mm |
| Neck Diameter (mm) | 9.70mm |
| Under Neck Parallel Length (mm) | 21.00mm |
| Neck Taper Angle (Degeee) | 1.00 Degree |
| Interferance Angle (Degree) | 0.93 Degree |
| Number of Flutes | 2 |
| Series | HPK47 |
| Shank Type | Plain |
| Helix Angle (Degree) | 30 Degree |
| Coating | C |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Cut Type | Center |

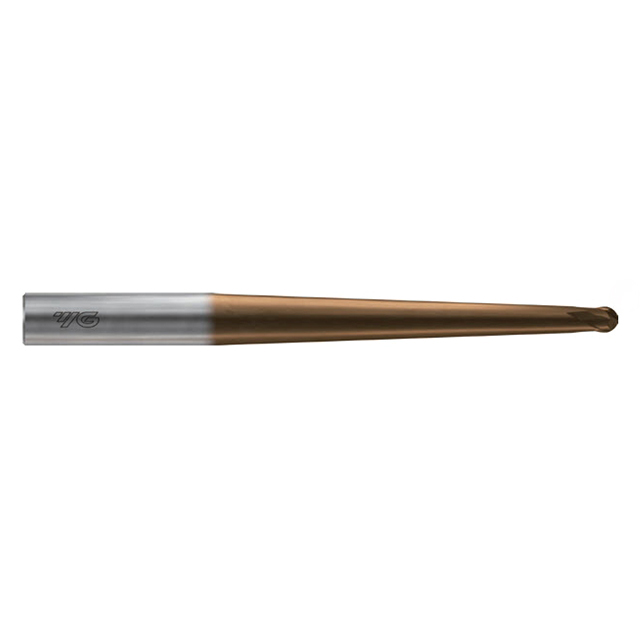

| Product Type | Ball Nose End Mill-Taper Neck |
