| Manufacturer Part Number | HPK47897 |
| Diameter (Inch) | 12/61" |
| Diameter (Decimal Inch) | 0.197" |
| Diameter (mm) | 5.00mm |
| Shank Diameter (Inch) | 23/73" |
| Shank Diameter (Decimal Inch) | 0.315" |
| Shank Diameter (mm) | 8.00mm |
| Length of Cut (Inch) | 37/94" |
| Length of Cut (Decimal Inch) | 0.394" |
| Length of Cut (mm) | 10.00mm |
| LBS (Inch) | 1-2/11" |
| LBS (Decimal Inch) | 1.181" |
| LBS (mm) | 30.00mm |
| Overall Length (Inch) | 3-3/20" |
| Overall Length (Decimal Inch) | 3.150" |
| Overall Length (mm) | 80.00mm |
| Ball Nose (Decimal Inch) | 0.098" |
| Ball Nose (Inch) | 2.50mm |
| Neck Diameter (mm) | 4.85mm |
| Under Neck Parallel Length (mm) | 13.00mm |
| Neck Taper Angle (Degeee) | 1.00 Degree |
| Interferance Angle (Degree) | 2.66 Degree |
| Number of Flutes | 2 |
| Series | HPK47 |
| Shank Type | Plain |
| Helix Angle (Degree) | 30 Degree |
| Coating | C |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Cut Type | Center |

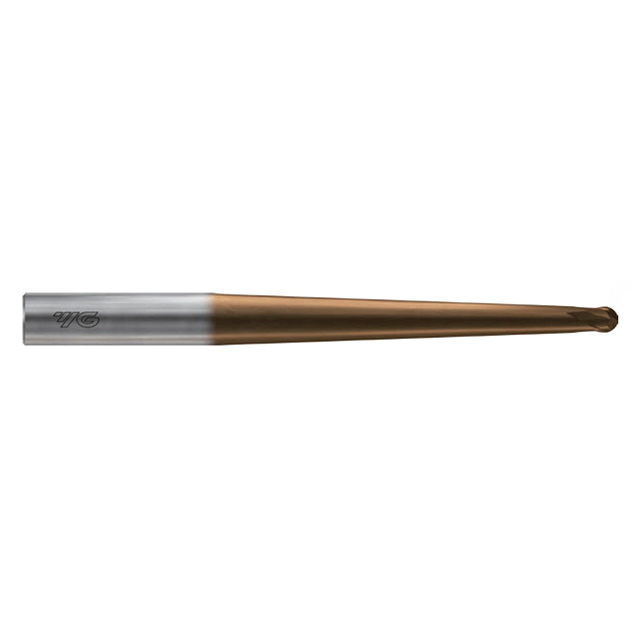

| Product Type | Ball Nose End Mill-Taper Neck |
