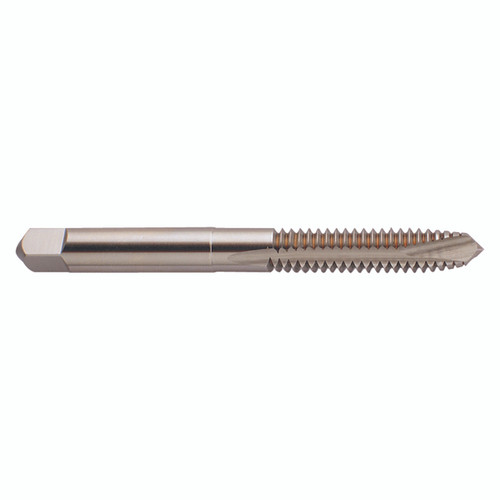

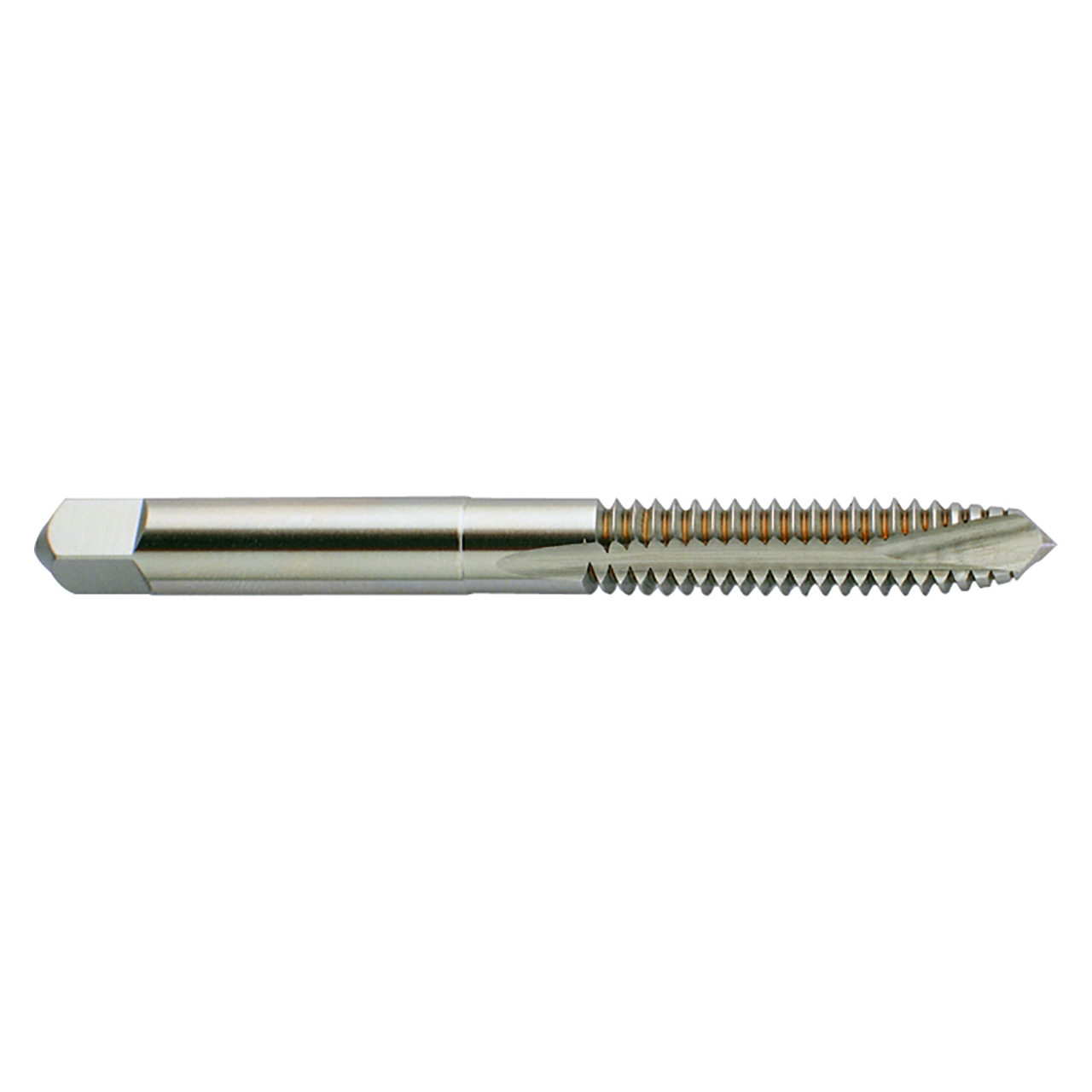

Product Specifications
| EDP Number | J0645 |
| Size & Pitch | 5/8-11 |
| Diameter (Decimal Inch) | 0.6250" |
| Diameter (mm) | 15.88mm |
| Overall Length (Decimal Inch) | 3.8100" |
| Length/Diameter | 3.0 x D |
| Coolant Through | No |
| Overall Length (mm) | 96.77mm |
| Thread Length (Decimal Inch) | 1.8100" |
| Thread Length (mm) | 45.97mm |
| Square Length (Decimal Inch) | 0.5600" |
| Square Length (mm) | 14.22mm |
| Shank Diameter (Decimal Inch) | 0.4800" |
| Shank Diameter (mm) | 12.19mm |
| Square Size (Decimal Inch) | 0.3600" |
| Square Size (mm) | 9.14mm |
| Drill Size (Decimal Inch) | 0.5423" |
| Drill Size (mm) | 13.78mm |
| Useable Length (mm) | 45.97mm |
| Useable Length (Decimal Inch) | 1.8100" |
| Connection (Decimal Inch) | 0.48 x 0.36" |
| Connection (mm) | 12.19 x 9.14mm |
| Series | J0 |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Thread Series | UNC |
| Pitch Limit | H5 |
| Blank Standard | 302 |
| Helix Angle (Degree) | 0 Degree |
| Finish | Bright |
| Shank Type | Square |
| Trade Name | YG Tap GP |
| Tap Type | SPPT |
| Number of Flute | 3 |
| Material | HSSE-V3 |
| Product Type | Spiral Point Tap |
