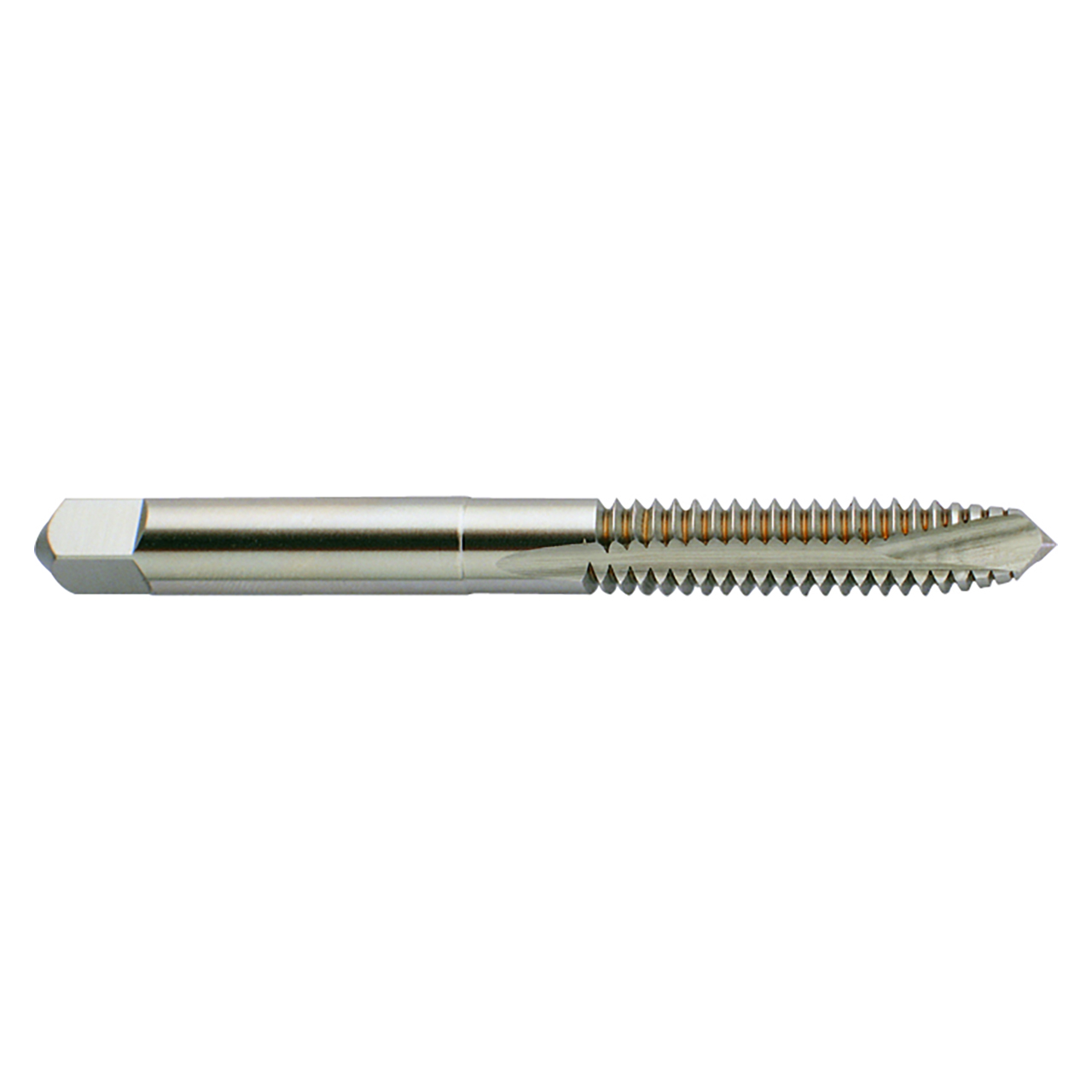

Product Specifications
| EDP Number | J0725 |
| Size & Pitch | 3/4-16 |
| Diameter (Decimal Inch) | 0.7500" |
| Diameter (mm) | 19.05mm |
| Overall Length (Decimal Inch) | 4.2500" |
| Length/Diameter | 3.0 x D |
| Coolant Through | No |
| Overall Length (mm) | 107.95mm |
| Thread Length (Decimal Inch) | 2.0000" |
| Thread Length (mm) | 50.80mm |
| Square Length (Decimal Inch) | 0.6900" |
| Square Length (mm) | 17.53mm |
| Shank Diameter (Decimal Inch) | 0.5900" |
| Shank Diameter (mm) | 14.99mm |
| Square Size (Decimal Inch) | 0.4420" |
| Square Size (mm) | 11.23mm |
| Drill Size (Decimal Inch) | 0.6932" |
| Drill Size (mm) | 17.61mm |
| Useable Length (mm) | 50.80mm |
| Useable Length (Decimal Inch) | 2.0000" |
| Connection (Decimal Inch) | 0.59 x 0.442" |
| Connection (mm) | 14.99 x 11.23mm |
| Series | J0 |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Thread Series | UNF |
| Pitch Limit | H5 |
| Blank Standard | 302 |
| Helix Angle (Degree) | 0 Degree |
| Finish | Bright |
| Shank Type | Square |
| Trade Name | YG Tap GP |
| Tap Type | SPPT |
| Number of Flute | 3 |
| Material | HSSE-V3 |
| Product Type | Spiral Point Tap |
