| Manufacturer Part Number | J2567 |
| Thread Size (Inch) | 1/2" |
| Thread Size (Decimal Inch) | 0.500" |
| Thread Size (mm) | 12.70mm |
| Pitch | 13 |
| Thread Series | UNC |
| Pitch Limit | H7 |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Overall Length (Decimal Inch) | 3.380" |
| Overall Length (mm) | 85.85mm |
| Thread Length (Decimal Inch) | 0.984" |
| Thread Length (mm) | 24.99mm |
| Square Length (Decimal Inch) | 0.440" |
| Square Length (mm) | 11.18mm |
| Shank Diameter (Decimal Inch) | 0.367" |
| Shank Diameter (mm) | 9.32mm |
| Square Size (Decimal Inch) | 0.275" |
| Square Size (mm) | 6.99mm |
| Neck Diameter (Decimal Inch) | 0.354" |
| Neck Diameter (mm) | 8.99mm |
| Neck Length (Decimal Inch) | 1.657" |
| Neck Length (mm) | 42.09mm |
| Drill Size (Decimal Inch) | 0.430" |
| Drill Size (mm) | 10.92mm |
| Connection Size (Decimal Inch) | 0.367" x 0.275" |
| Connection Size (mm) | 9.32mm x 6.99mm |
| Usable Length (Decimal Inch) | 1.657" |
| Usable Length (mm) | 42.09mm |
| Shank Type | Square |
| Number of Flutes | 3 |
| Blank Standard | 302A |
| Coating | Hardslick |
| Material | HSS-E |
| Series | J2 |

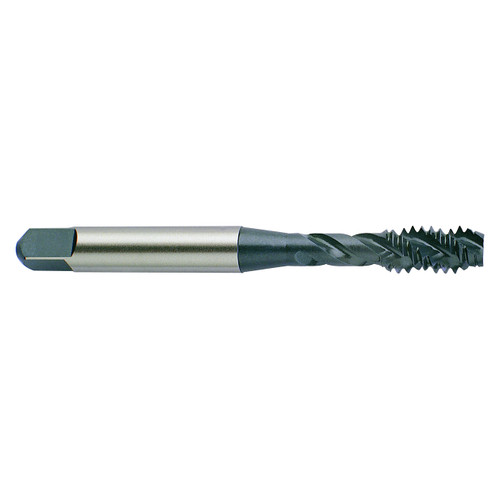

| Product Type | Spiral Point Tap |
