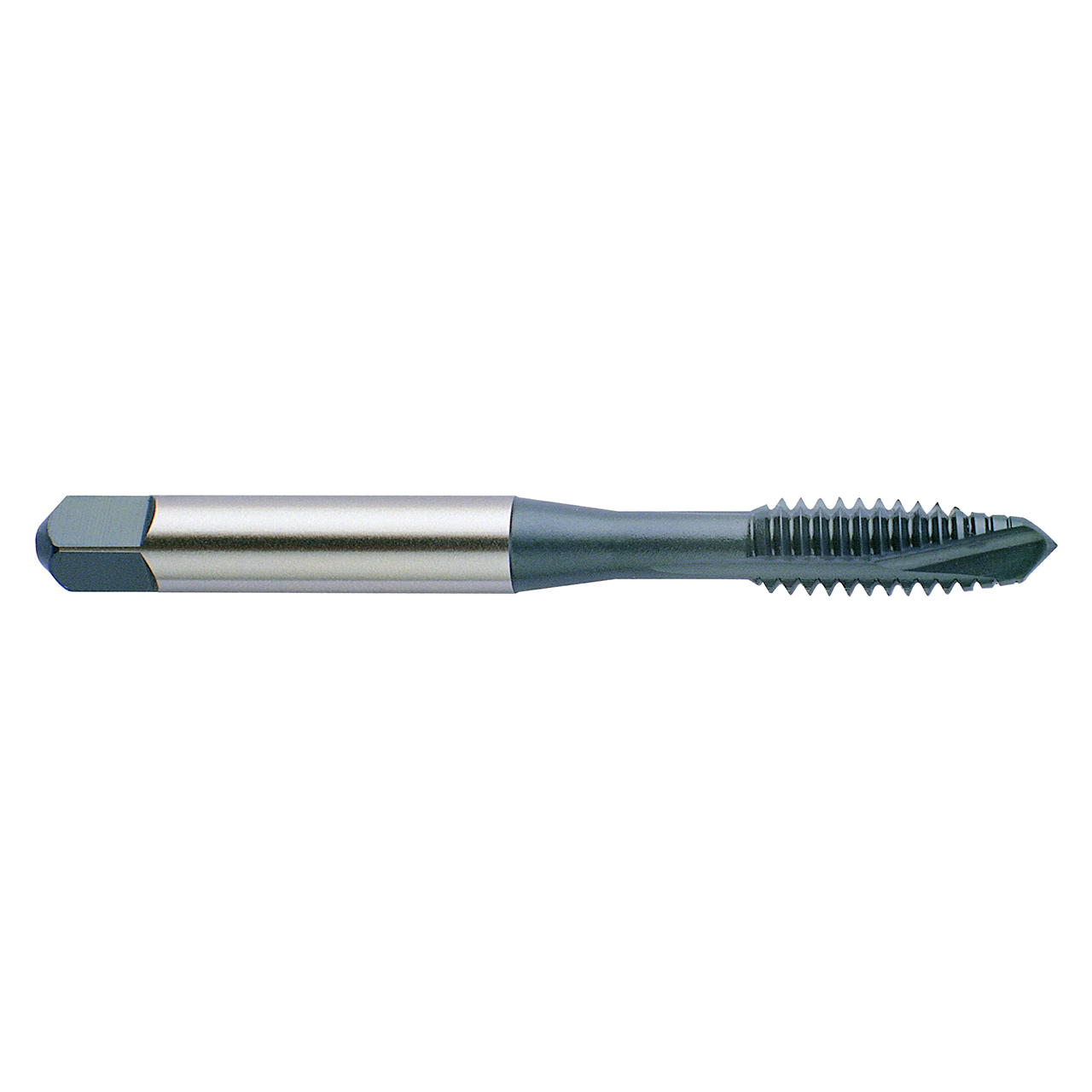

YG1 J6082 | 0.0860" Diameter x 0.1410" Shank x 1.7500" OAL 3 Flute Hardslick Coated P-HSS Spiral Point Tap

$36.88
SKU:
15009270
Weight:
0.01 LBS
Shipping:
Calculated at Checkout

Product Specifications
Diameter (Decimal Inch)J6082
Diameter (Decimal Inch)0.0860"
Diameter (mm)2.18mm
Overall Length (Decimal Inch)1.7500"
Overall Length (mm)44.45mm
Thread Length (Decimal Inch)0.2560"
Thread Length (mm)6.50mm
Square Length (Decimal Inch)0.1900"
Square Length (mm)4.83mm
Shank Diameter (Decimal Inch)0.1410"
Shank Diameter (mm)3.58mm
Square Size (Decimal Inch)0.1100"
Square Size (mm)2.79mm
Neck Diameter (Decimal Inch)0.5770"
Neck Diameter (mm)2.29mm
Drill Size (Decimal Inch)0.0698"
Drill Size (mm)1.77mm
Useable Length (Decimal Inch)0.4330"
Useable Length (mm)11.00mm
Number Of Flutes3
Size#2
Tap TypeSPPT
Size & Pitch#2-56
Pitch56 TPI
Thread SeriesUNC
Pitch LimitH2
Chamfer TypePlug
Chamfer Length4P-5P
CoatingHardslick
MaterialP-HSS
Blank Standard302A
Coolant ThroughNo
Product TypeSpiral Point Tap
