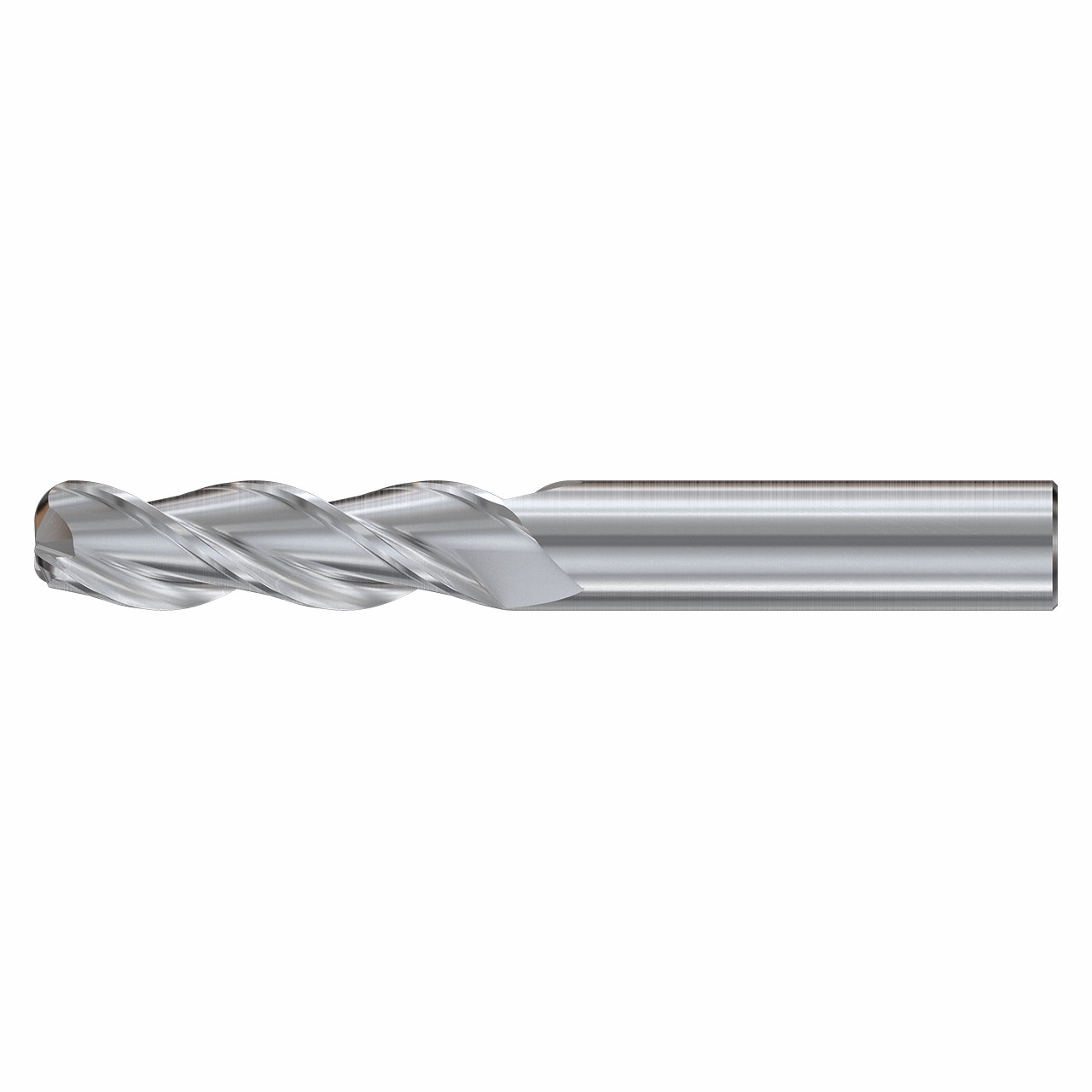

Product Specifications
| Manufacturer Part Number | JAG97879 |
| Diameter (Inch) | 1/2" |
| Diameter (Decimal Inch) | 0.5000" |
| Diameter (mm) | 12.70mm |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (mm) | 12.70mm |
| Length of Cut (Inch) | 1" |
| Length of Cut (Decimal Inch) | 1.0000" |
| Length of Cut (mm) | 25.40mm |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (mm) | 76.20mm |
| Corner Radius (Decimal Inch) | 0.0100" |
| Corner Radius (mm) | 0.25mm |
| Number of Flutes | 3 |
| Series | JAG97 |
| Helix Angle | 37 Degree |
| Shank Style | Plain |
| Coating | Super DLC |
| Material | Carbide |
| Cut Type | Center |
| Corner Type | Corner Radius |
| Type | Corner Radius |
| Cutting Direction | Right |
| Application | N |
