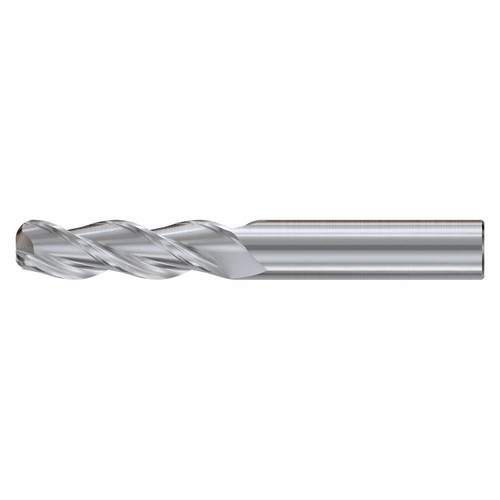

YG1 JAG97881 | 0.5000" Diameter x 0.5000" Shank x 1.0000" LOC x 3.0000" OAL x 0.0600" Radius 3 Flute Super DLC Coated Carbide Corner Radius End Mill

$63.97
SKU:
25056326
Weight:
2.09 LBS
Shipping:
Calculated at Checkout

Product Specifications
Manufacturer Part NumberJAG97881
Diameter (Inch)1/2"
Diameter (Decimal Inch)0.5000"
Diameter (mm)12.70mm
Shank Diameter (Inch)1/2"
Shank Diameter (Decimal Inch)0.5000"
Shank Diameter (mm)12.70mm
Length of Cut (Inch)1"
Length of Cut (Decimal Inch)1.0000"
Length of Cut (mm)25.40mm
Overall Length (Inch)3"
Overall Length (Decimal Inch)3.0000"
Overall Length (mm)76.20mm
Corner Radius (Inch)3/50"
Corner Radius (Decimal Inch)0.0600"
Corner Radius (mm)1.52mm
Number of Flutes3
SeriesJAG97
Helix Angle37 Degree
Shank StylePlain
CoatingSuper DLC
MaterialCarbide
Cut TypeCenter
Corner TypeCorner Radius
Type Corner Radius
Cutting DirectionRight
ApplicationN
