Product Specifications
| EDP Number | K0676 |
| Size | M18 |
| Pitch (TPI) | 1.5 TPI |
| Diameter (Decimal Inch) | 0.7087" |
| Diameter (mm) | 18.00mm |
| Overall Length (Decimal Inch) | 4.3310" |
| Overall Length (mm) | 110.01mm |
| Thread Length (Decimal Inch) | 1.0830" |
| Thread Length (mm) | 27.51mm |
| Square Length (Decimal Inch) | 0.6300" |
| Square Length (mm) | 16.00mm |
| Shank Diameter (Decimal Inch) | 0.5420" |
| Shank Diameter (mm) | 13.77mm |
| Square Size (Decimal Inch) | 0.4060" |
| Square Size (mm) | 13.77mm |
| Neck Diameter (Decimal Inch) | 0.5300" |
| Neck Diameter (mm) | 13.46mm |
| Drill Size (Decimal Inch) | 0.6550" |
| Drill Size (mm) | 16.64mm |
| Useable Length (Decimal Inch) | 1.8110" |
| Useable Length (mm) | 46.00mm |
| Length/Diameter | 3.0xD |
| Number of Flutes | 4 |
| Series | K0 |
| Thread Series | MF |
| Pitch Limit | D6 |
| Chamfer Length | 4P-5P |
| Blank Standard | DIN/ANSI |
| Coating | Bright |
| Material | HSSE-V3 |
| Shank Type | Square |
| Trade Name | YG Tap Steel |
| Tap Type | Spiral Point |
| Chamfer Type | Plug |

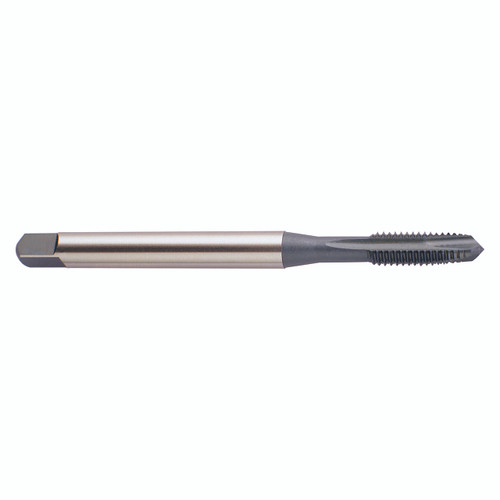

| Product Type | Spiral Point Plug Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Thread Limit:
D6
Number of Flutes:
4
Thread Standard:
MF
Chamfer:
4P-5P
Finish/Coating:
Bright
Material:
HSSE-V3
