| Manufacturer Part Number | K6315 |
| Diameter (Decimal Inch) | 0.2362" |
| Diameter (mm) | 6.00mm |
| Overall Length (Decimal Inch) | 3.1500" |
| Overall Length (mm) | 80.01mm |
| Thread Length (Decimal Inch) | 0.5910" |
| Thread Length (mm) | 15.01mm |
| Square Length (Decimal Inch) | 0.2800" |
| Square Length (mm) | 7.11mm |
| Shank Diameter (Decimal Inch) | 0.2550" |
| Shank Diameter (mm) | 6.48mm |
| Square Size (Decimal Inch) | 0.1910" |
| Square Size (mm) | 4.85mm |
| Neck Diameter (Decimal Inch) | 0.1810" |
| Neck Diameter (mm) | 4.60mm |
| Drill Size (Decimal Inch) | 0.2004" |
| Drill Size (mm) | 5.09mm |
| Useable Length (Decimal Inch) | 1.0000" |
| Useable Length (mm) | 25.40mm |
| Thread Diameter (Inch) | M6 |
| Threads Per Inch | 1 TPI |
| Number of Flutes | 3 |
| Pitch Limit | D5 |
| Series | K6 |
| Thread Series | M |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Finish | Hardslick |
| Material | HSSE-V3 |
| Blank Standard | DIN/ANSI |
| Length/Diameter | 3xD |
| Shank Type | Square |

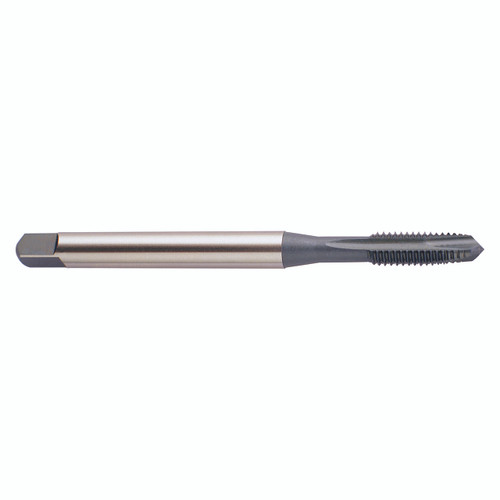

| Tap Type | Spiral Point Tap |
