Product Specifications
| EDP Number | K910303230 |
| Diameter (Decimal Inch) | 0.3230" |
| Diameter (Inch) | 13/56" |
| Diameter (mm) | 8.20mm |
| Size (Letter) | P |
| Shank Diameter (Decimal Inch) | 0.3230" |
| Shank Diameter (Inch) | 21/65" |
| Shank Diameter (mm) | 8.20mm |
| Flute Length (Decimal Inch) | 1.2500" |
| Flute Length (Inch) | 1-1/4" |
| Flute Length (mm) | 31.75mm |
| Overall Length (Decimal Inch) | 3.5000" |
| Overall Length (Inch) | 3-1/2" |
| Overall Length (mm) | 88.90mm |
| Number of Flutes | 6 |
| Series | K9103 |
| Shank Tolerance | +0.0000"/-0.0010" |
| Hole Tolerance | +0.0000"/-0.0003" |
| Coating | Bright |
| Material | Carbide |
| Chamfer Angle (Degree) | 45 Degree |
| Helix Angle (Degree) | 0 Degree |
| Shank Type | Straight |
| Flute Style | Straight |
| Application | P |
| Cutting Direction | Right Hand |

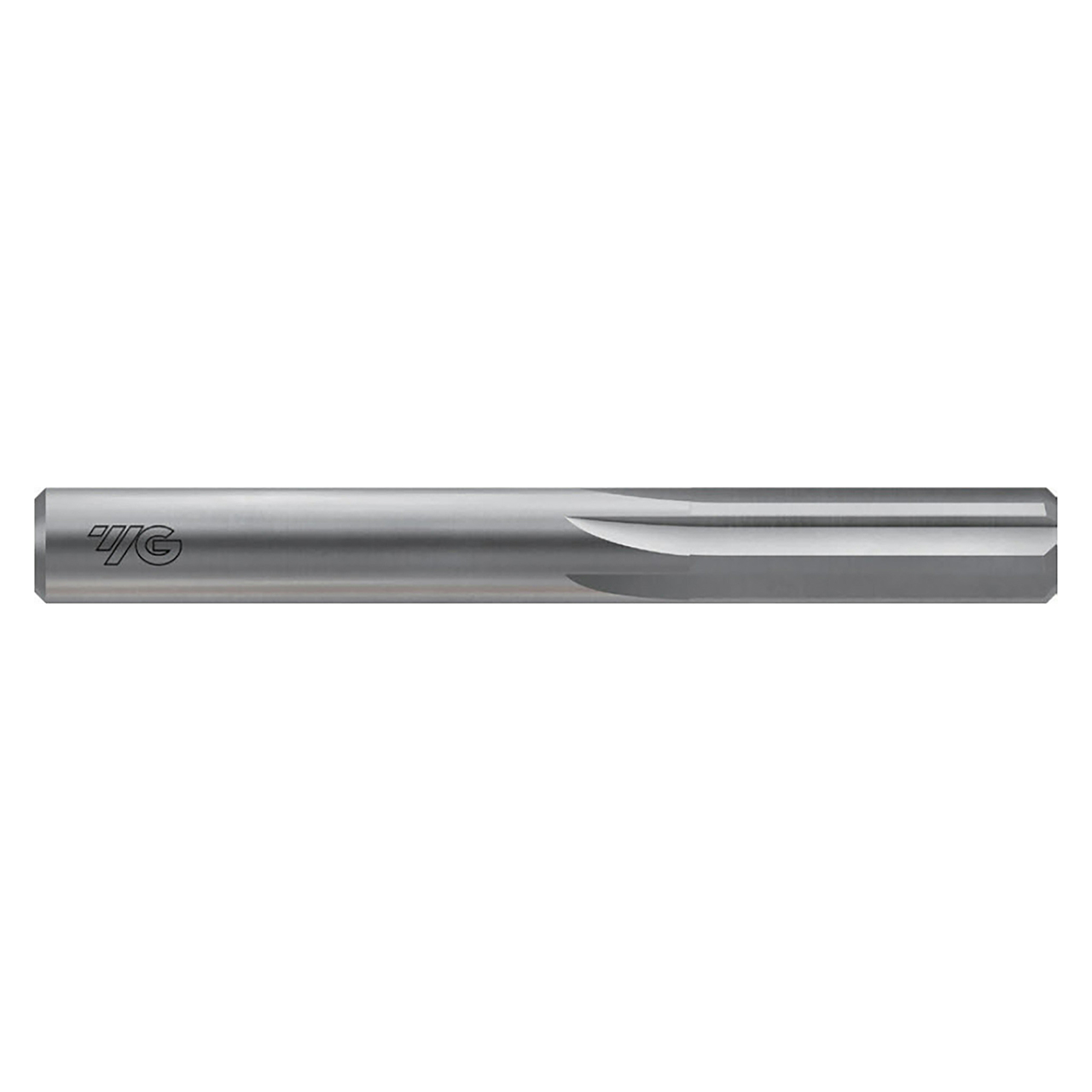

| Product Type | Chucking Reamer |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Shank Type:
Straight
Flute Type:
Straight
Reamer Diameter (Inch):
13/56"
Reamer Diameter (Decimal Inch):
0.3230"
Reamer Diameter (mm):
8.20mm
Reamer Diameter (Letter):
P
Flute Length (Inch):
1-1/4"
Flute Length (Decimal Inch):
1.2500"
Flute Length (mm):
31.75mm
Number of Flutes:
6
Material:
Carbide
Finish/Coating:
Bright
interval quantity:
1
