| Manufacturer Part Number | K910704860 |
| Diameter (Decimal Inch) | 0.4860" |
| Diameter (mm) | 12.34mm |
| Shank Diameter (Decimal Inch) | 0.4860" |
| Shank Diameter (mm) | 12.34mm |
| Flute Length (Decimal Inch) | 1.5000" |
| Flute Length (mm) | 38.10mm |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall Length (Inch) | 4" |
| Overall Length (mm) | 101.60mm |
| Number of Flutes | 6 |
| Series | K9107 |
| Shank Tolerance | +0.0000"/-0.0010" |
| Hole Tolerance | +0.0003"/-0.0000" |
| Coating | Bright |
| Material | Carbide |
| Chamfer Angle (Degree) | 45 Degree |
| Helix Angle (Degree) | 0 Degree |
| Shank Type | Straight |
| Flute Style | Straight |
| Application | P |
| Cutting Direction | Right Hand |

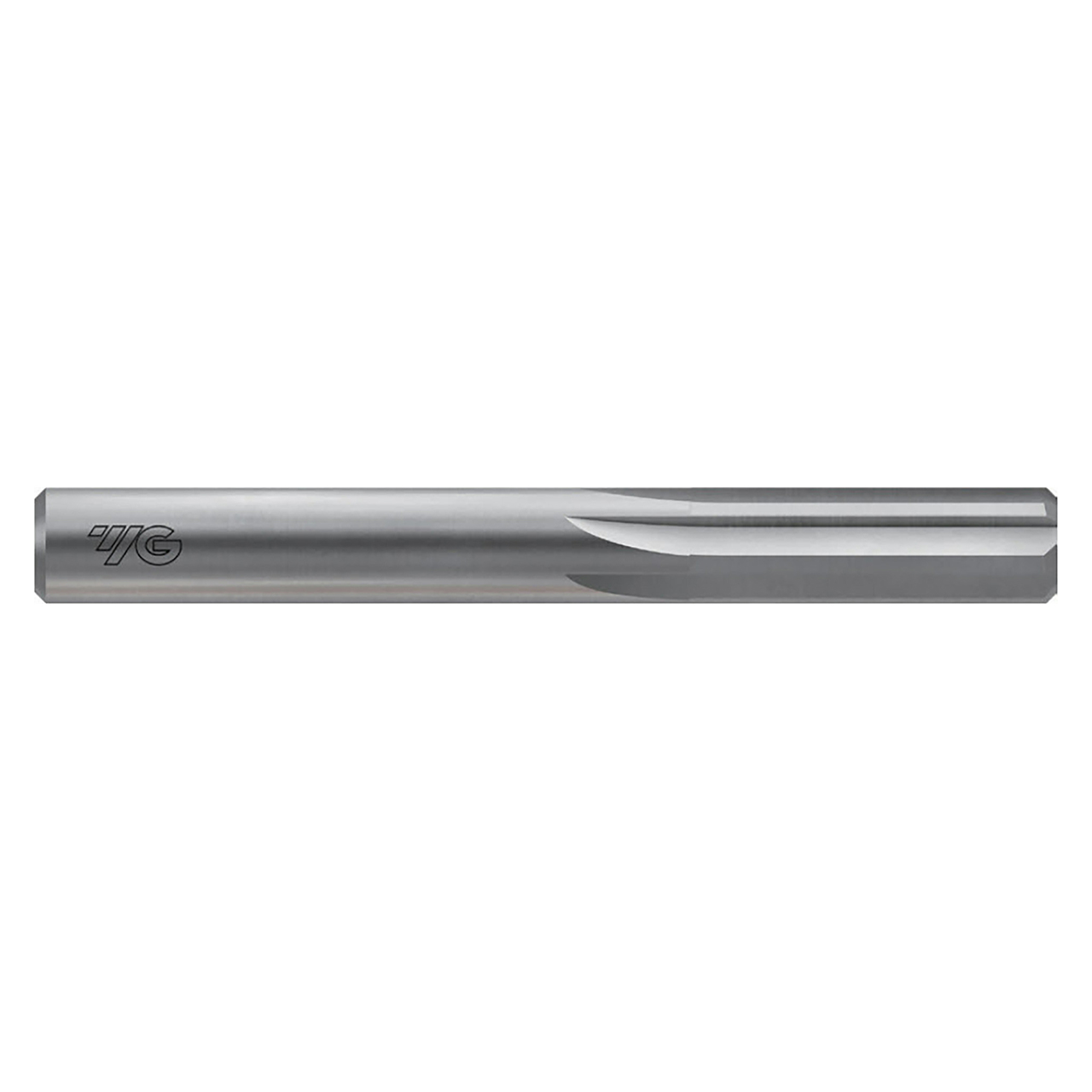

| Product Type | Chucking Reamer |
