Product Specifications

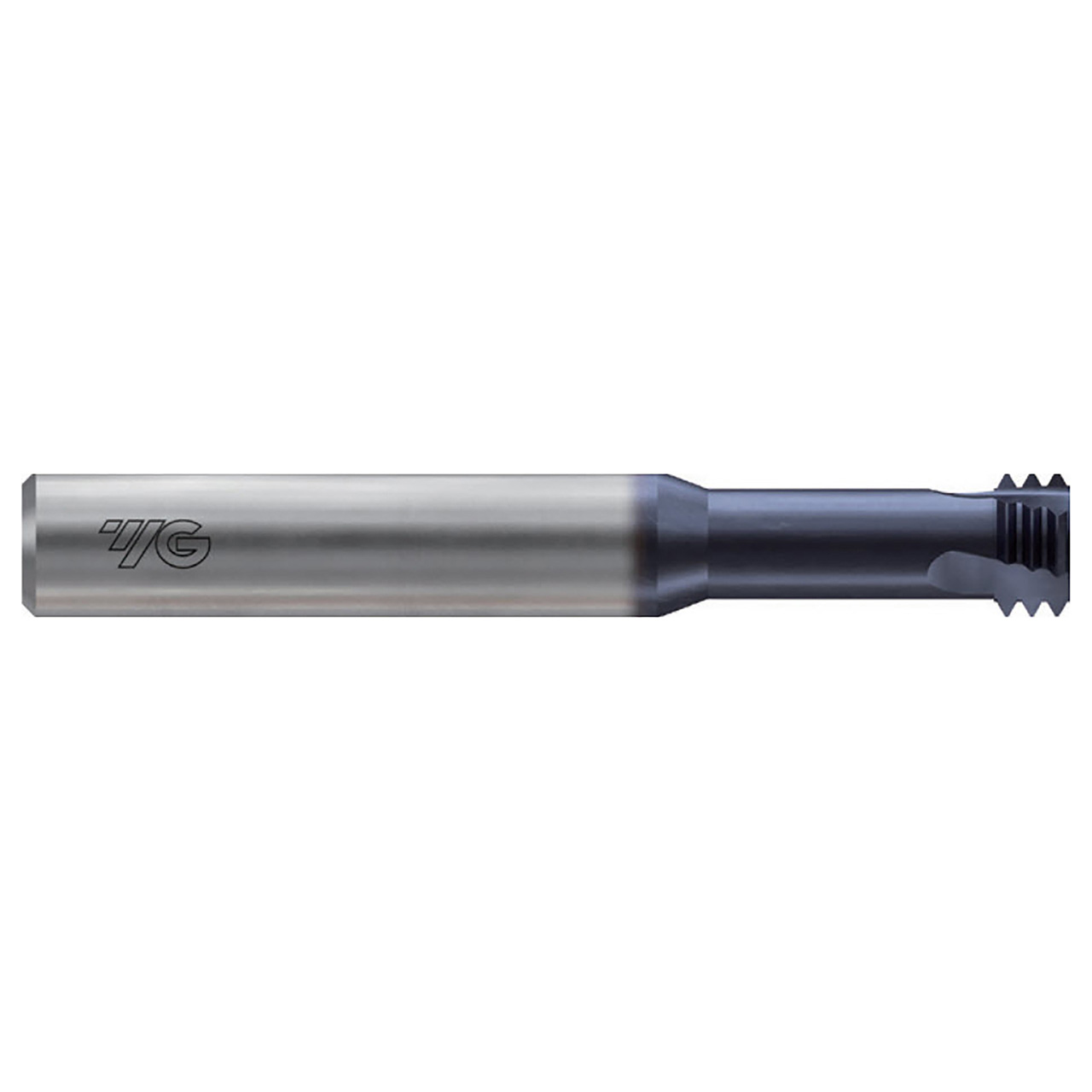

| Manufacturer Part Number | L12DD240 |
| Thread Diameter (Inch) | M4 |
| Threads Per Inch | 0.7 TPI |
| Diameter (Inch) | 1/8" |
| Diameter (Decimal Inch) | 0.1240" |
| Diameter (mm) | 3.15mm |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (mm) | 6.35mm |
| Thread Length (Inch) | 1/12" |
| Thread Length (Decimal Inch) | 0.0830" |
| Thread Length (mm) | 2.11mm |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (mm) | 63.50mm |
| Neck (Inch) | 17/52" |
| Number of Flutes | 3 |
| Series | L12DD |
| Thread Series | M |
| Shank Style | Plain |
| Helix Angle | 15 Degree |
| Coating | TiAIN |
| Material | Carbide |
| Type | Metric Internal Thread-DIN13 |
| Application | P,K,N |
| Cutting Direction | Right |
