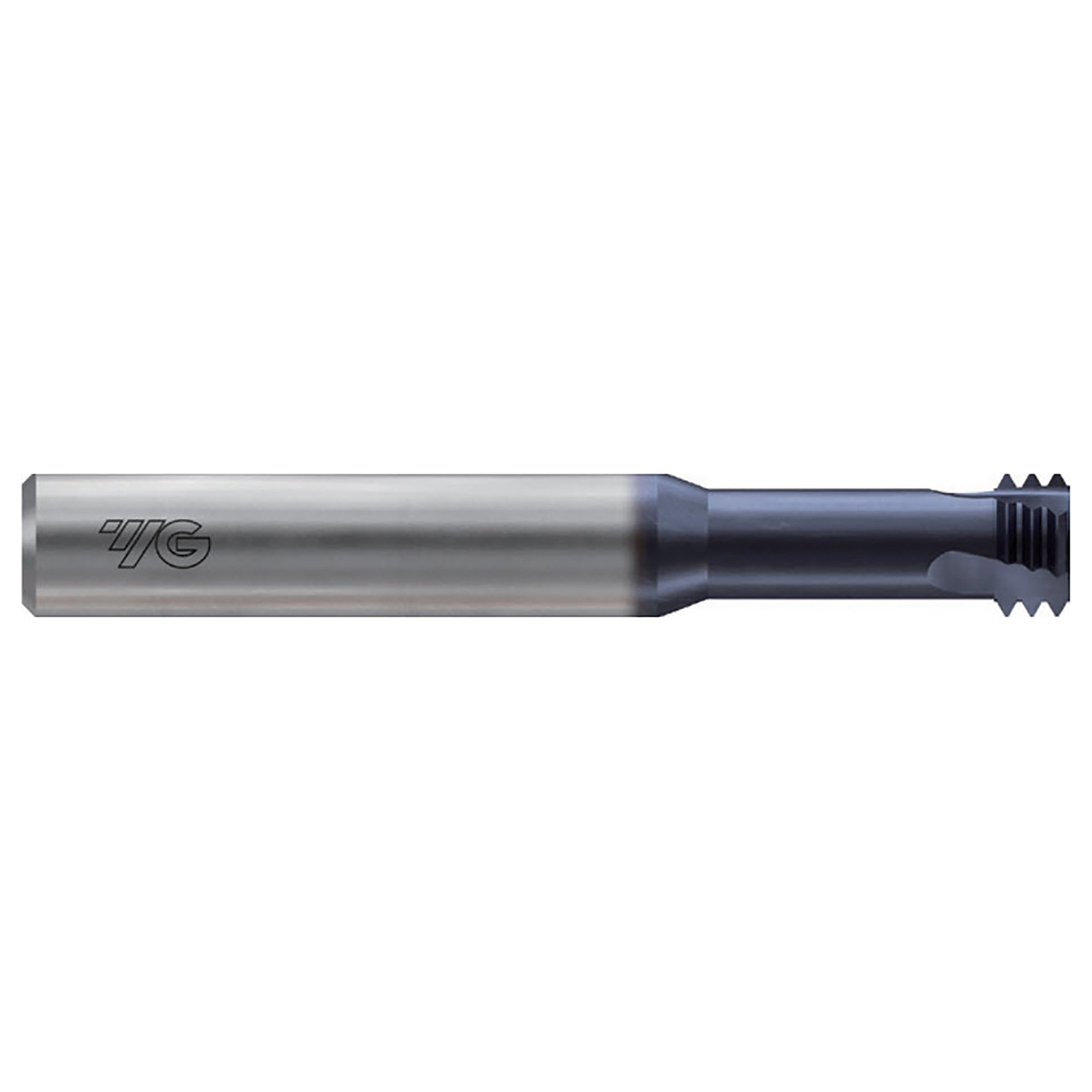

YG1 L12DD280 | M5 x 0.8 Thread x 0.1590" Diameter x 0.2500" Shank x 2.5000" OAL 3 Flute TiAIN Coated Carbide Helical Flute Thread Mill

$178.62 $128.61
(You save $50.01)
Brand:
YG1
Thread Size (Inch):
M5
Threads Per Inch:
0.8 TPI
Cutter Diameter (Inch):
7/44"
Cutter Diameter (Decimal Inch):
0.1590"
Cutter Diameter (mm):
4.04mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Number of Flutes:
3
Finish/Coating:
TiAIN
Material:
Carbide
interval quantity:
1
SKU:
17983422
UPC:
Weight:
0.05 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
YG1 L12DD280 | M5 x 0.8 Thread x 0.1590" Diameter x 0.2500" Shank x 2.5000" OAL 3 Flute TiAIN Coated Carbide Helical Flute Thread Mill

Product Specifications
Manufacturer Part NumberL12DD280
Thread Diameter (Inch)M5
Threads Per Inch0.8 TPI
Diameter (Inch)7/44"
Diameter (Decimal Inch)0.1590"
Diameter (mm)4.04mm
Shank Diameter (Inch)1/4"
Shank Diameter (Decimal Inch)0.2500"
Shank Diameter (mm)6.35mm
Thread Length (Inch)3/32"
Thread Length (Decimal Inch)0.0940"
Thread Length (mm)2.39mm
Overall Length (Inch)2-1/2"
Overall Length (Decimal Inch)2.5000"
Overall Length (mm)63.50mm
Neck (Inch)9/22"
Number of Flutes3
SeriesL12DD
Thread SeriesM
Shank StylePlain
Helix Angle15 Degree
CoatingTiAIN
MaterialCarbide
Type Metric Internal Thread-DIN13
ApplicationP,K,N
Cutting DirectionRight

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
