Product Specifications

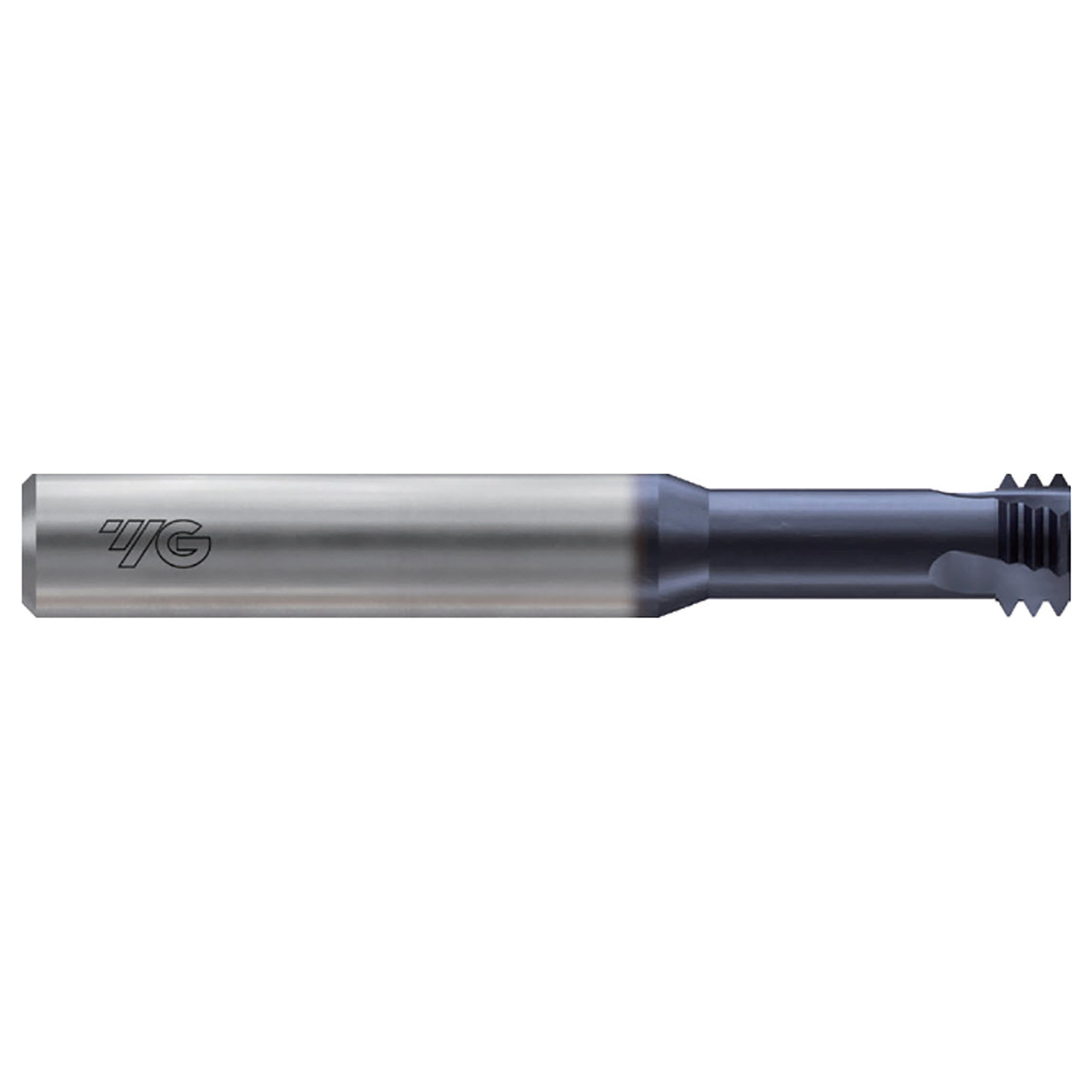

| Manufacturer Part Number | L12DE040 |
| Thread Diameter (Inch) | #1 |
| Threads Per Inch | 64 TPI |
| Diameter (Inch) | 5/91" |
| Diameter (Decimal Inch) | 0.0550" |
| Diameter (mm) | 1.40mm |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (mm) | 6.35mm |
| Thread Length (Inch) | 4/85" |
| Thread Length (Decimal Inch) | 0.0470" |
| Thread Length (mm) | 1.19mm |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (mm) | 63.50mm |
| Neck (Inch) | 16/97" |
| Number of Flutes | 3 |
| Series | L12DE |
| Thread Series | UN |
| Shank Style | Plain |
| Helix Angle | 15 Degree |
| Coating | TiAIN |
| Material | Carbide |
| Type | Unified Internal Thread-DIN13 |
| Application | P,K,N |
| Cutting Direction | Right |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Thread Size (Inch):
#1
Threads Per Inch:
64 TPI
Cutter Diameter (Inch):
5/91"
Cutter Diameter (Decimal Inch):
0.0550"
Cutter Diameter (mm):
1.40mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Number of Flutes:
3
Finish/Coating:
TiAIN
Material:
Carbide
