Product Specifications

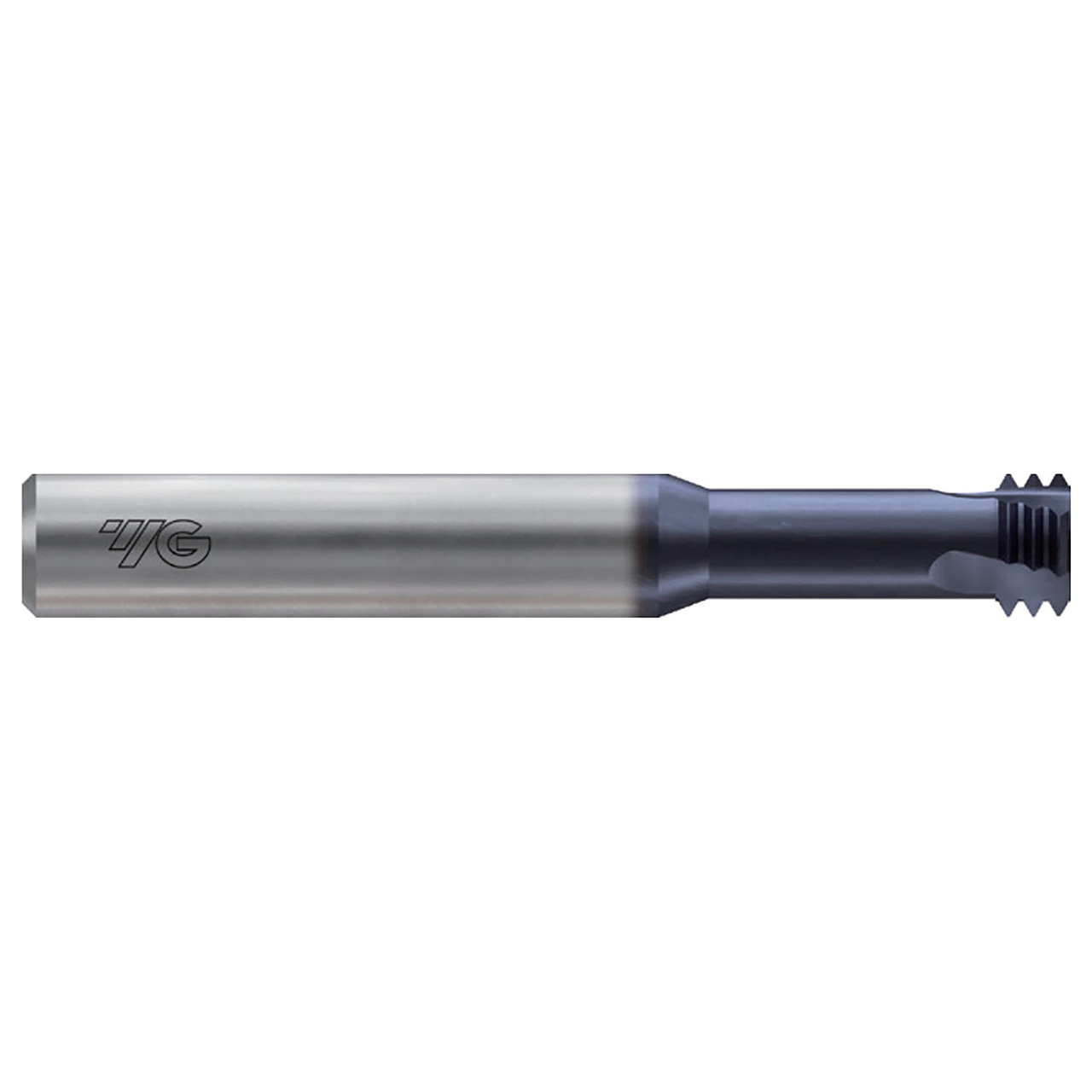

| Manufacturer Part Number | L12DE120 |
| Thread Diameter (Inch) | #3 |
| Threads Per Inch | 48 TPI |
| Diameter (Inch) | 3/40" |
| Diameter (Decimal Inch) | 0.0750" |
| Diameter (mm) | 1.91mm |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (mm) | 6.35mm |
| Thread Length (Inch) | 1/16" |
| Thread Length (Decimal Inch) | 0.0630" |
| Thread Length (mm) | 1.60mm |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (mm) | 63.50mm |
| Neck (Inch) | 21/89" |
| Number of Flutes | 3 |
| Series | L12DE |
| Thread Series | UN |
| Shank Style | Plain |
| Helix Angle | 15 Degree |
| Coating | TiAIN |
| Material | Carbide |
| Type | Unified Internal Thread-DIN13 |
| Application | P,K,N |
| Cutting Direction | Right |
