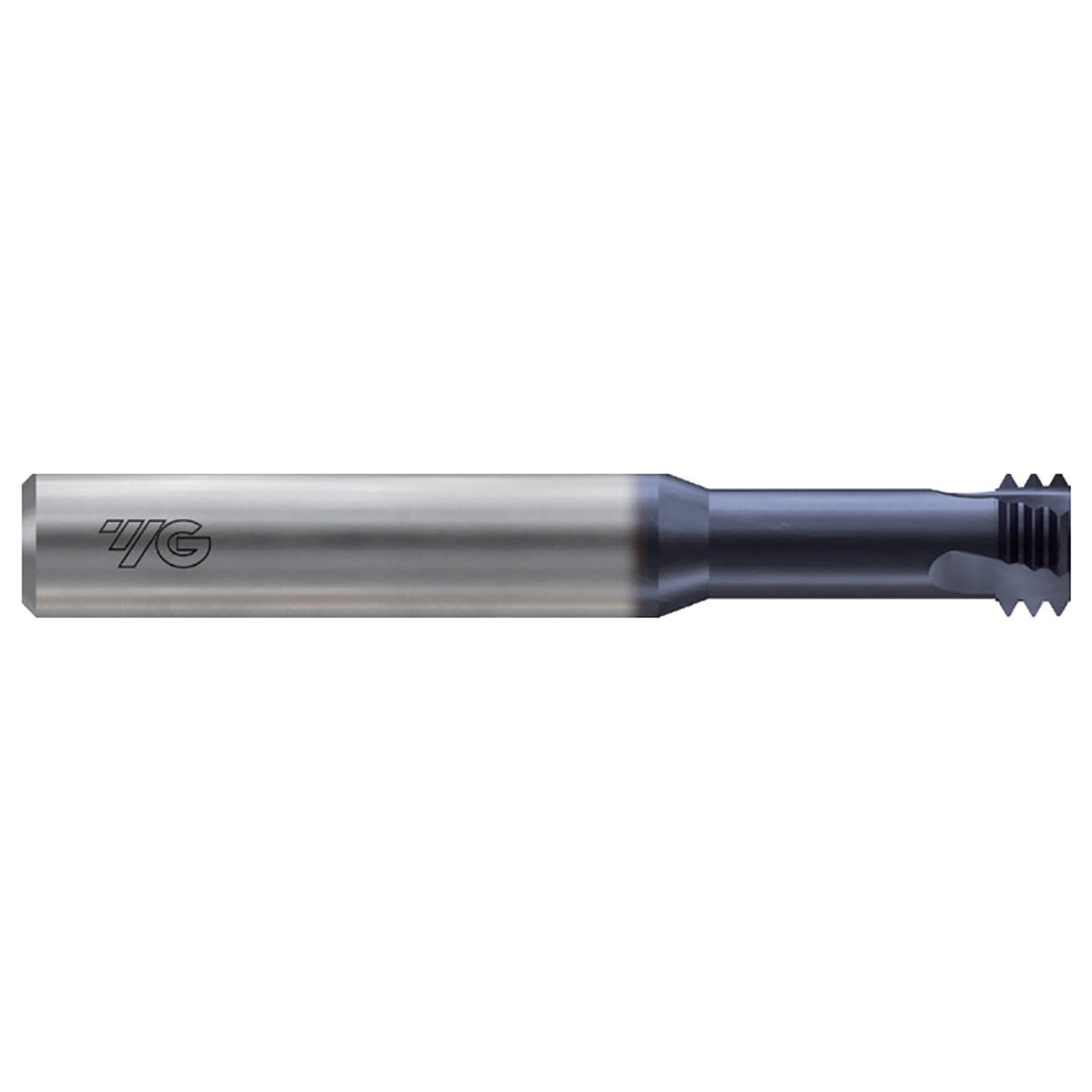

YG1 L12DE440 | 5/16" x 18 Thread x 0.2420" Diameter x 0.3120" Shank x 2.5000" OAL 3 Flute TiAIN Coated Carbide Helical Flute Thread Mill

$250.87 $180.63
(You save $70.24)
Brand:
YG1
Thread Size (Inch):
5/16"
Thread Size (Decimal Inch):
0.3125"
Thread Size (mm):
7.94mm
Threads Per Inch:
18 TPI
Cutter Diameter (Inch):
15/62"
Cutter Diameter (Decimal Inch):
0.2420"
Cutter Diameter (mm):
6.15mm
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3120"
Number of Flutes:
3
Finish/Coating:
TiAIN
Material:
Carbide
interval quantity:
1
SKU:
17983436
UPC:
Weight:
0.08 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Product Specifications
Manufacturer Part NumberL12DE440
Thread Diameter (Inch)5/16"
Threads Per Inch18 TPI
Diameter (Inch)15/62"
Diameter (Decimal Inch)0.2420"
Diameter (mm)6.15mm
Shank Diameter (Inch)5/16"
Shank Diameter (Decimal Inch)0.3120"
Shank Diameter (mm)7.92mm
Thread Length (Inch)1/6"
Thread Length (Decimal Inch)0.1670"
Thread Length (mm)4.24mm
Overall Length (Inch)2-1/2"
Overall Length (Decimal Inch)2.5000"
Overall Length (mm)63.50mm
Neck (Inch)13/20"
Number of Flutes3
SeriesL12DE
Thread SeriesUN
Shank StylePlain
Helix Angle15 Degree
CoatingTiAIN
MaterialCarbide
Type Unified Internal Thread-DIN13
ApplicationP,K,N
Cutting DirectionRight
