Product Specifications
| EDP Number | L3563 |
| Size & Pitch | 1/2-13 |
| Diameter (Decimal Inch) | 0.5000" |
| Diameter (mm) | 12.70mm |
| Overall Length (Decimal Inch) | 4.3310" |
| Length/Diameter | 3.0 x D |
| Coolant Through | No |
| Overall Length (mm) | 110.01mm |
| Thread Length (Decimal Inch) | 0.9800" |
| Thread Length (mm) | 24.99mm |
| Square Length (Decimal Inch) | 0.4400" |
| Square Length (mm) | 11.18mm |
| Shank Diameter (Decimal Inch) | 0.3670" |
| Shank Diameter (mm) | 9.32mm |
| Square Size (Decimal Inch) | 0.2750" |
| Square Size (mm) | 6.99mm |
| Neck Diameter (mm) | 8.99mm |
| Drill Size (Decimal Inch) | 0.4301" |
| Drill Size (mm) | 10.92mm |
| Useable Length (mm) | 42.09mm |
| Useable Length (Decimal Inch) | 1.6570" |
| Connection (Decimal Inch) | 0.367 x 0.275" |
| Connection (mm) | 9.32 x 6.99mm |
| Series | L3 |
| Chamfer Type | Plug |
| Neck Diameter (Decimal Inch) | 0.3540" |
| Chamfer Length | 4P-5P |
| Thread Series | UNC |
| Pitch Limit | H3 |
| Blank Standard | DIN/ANSI |
| Helix Angle (Degree) | 0 Degree |
| Finish | Bright |
| Shank Type | Square |
| Trade Name | YG Tap GP |
| Tap Type | SPPT |
| Number of Flute | 3 |
| Material | HSS-V |

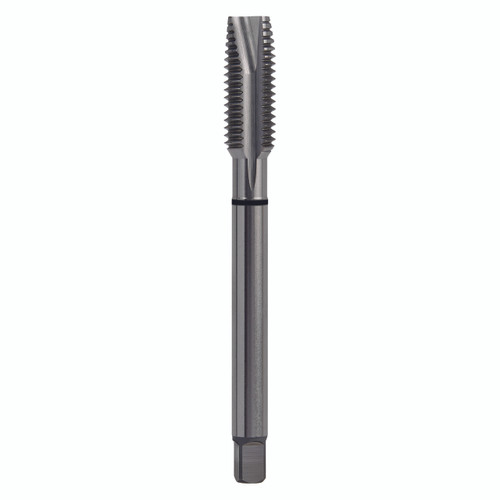

| Product Type | Spiral Point Tap |
