| Manufacturer Part Number | L3786 |
| Size & Pitch | 1-8 |
| Diameter (Decimal Inch) | 1.0000" |
| Diameter (mm) | 25.40mm |
| Overall Length (Decimal Inch) | 6.2990" |
| Length/Diameter | 3.0 x D |
| Coolant Through | No |
| Overall Length (mm) | 159.99mm |
| Thread Length (Decimal Inch) | 1.5000" |
| Thread Length (mm) | 38.00mm |
| Square Length (Decimal Inch) | 0.8100" |
| Square Length (mm) | 20.57mm |
| Shank Diameter (Decimal Inch) | 0.8000" |
| Shank Diameter (mm) | 20.32mm |
| Square Size (Decimal Inch) | 0.6000" |
| Square Size (mm) | 15.24mm |
| Neck Diameter (mm) | 19.99mm |
| Drill Size (Decimal Inch) | 0.8863" |
| Drill Size (mm) | 22.51mm |
| Useable Length (mm) | 63.50mm |
| Useable Length (Decimal Inch) | 2.5000" |
| Connection (Decimal Inch) | 0.8 x 0.6" |
| Connection (mm) | 20.32 x 15.24mm |
| Series | L3 |
| Chamfer Type | Plug |
| Neck Diameter (Decimal Inch) | 0.7870" |
| Chamfer Length | 4P-5P |
| Thread Series | UNC |
| Pitch Limit | H6 |
| Blank Standard | DIN/ANSI |
| Helix Angle (Degree) | 0 Degree |
| Finish | Bright |
| Shank Type | Square |
| Trade Name | YG Tap GP |
| Tap Type | SPPT |
| Number of Flute | 3 |
| Material | HSS-V |

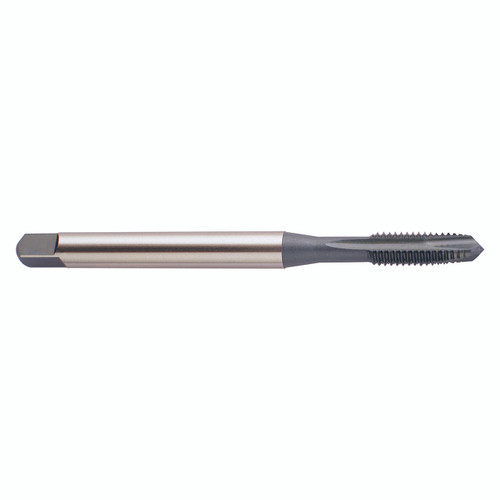

| Product Type | Spiral Point Tap |
