Product Specifications

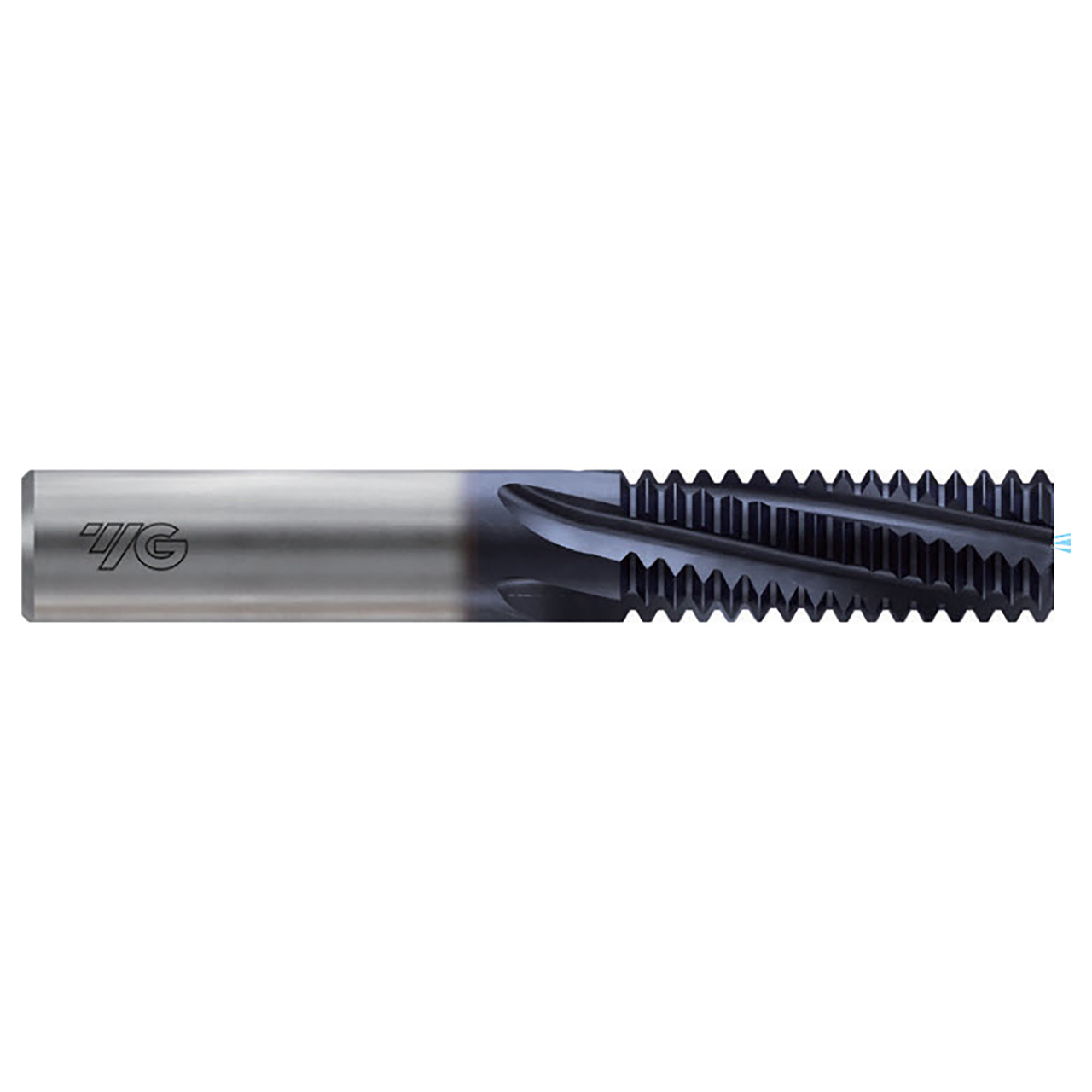

| Manufacturer Part Number | L421E640 |
| Thread Diameter (Inch) | 5/8" |
| Threads Per Inch | 11 TPI |
| Diameter (Inch) | 8/17" |
| Diameter (Decimal Inch) | 0.4700" |
| Diameter (mm) | 11.94mm |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (mm) | 12.70mm |
| Thread Length (Inch) | 1-1/4" |
| Thread Length (Decimal Inch) | 1.2500" |
| Thread Length (mm) | 31.75mm |
| Overall Length (Inch) | 3-1/2" |
| Overall Length (Decimal Inch) | 3.5000" |
| Overall Length (mm) | 88.90mm |
| Number of Flutes | 4 |
| Series | L421E |
| Thread Series | UN |
| Shank Style | Plain |
| Helix Angle | 15 Degree |
| Coating | TiAIN |
| Material | Carbide |
| Type | Unified Internal Threads-ANSI B1.1 |
| Application | P,K,N |
| Cutting Direction | Right |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Thread Size (Inch):
5/8"
Thread Size (Decimal Inch):
0.6250"
Thread Size (mm):
15.88mm
Threads Per Inch:
11 TPI
Cutter Diameter (Inch):
8/17"
Cutter Diameter (Decimal Inch):
0.4700"
Cutter Diameter (mm):
11.94mm
Number of Flutes:
4
Finish/Coating:
TiAIN
Material:
Carbide
