| Manufacturer Part Number | L621F020 |
| Thread Size (Inch) | 1/6 " & 1/8" |
| Threads per Inch (TPI) | 27 |
| Thread Series | NPT |
| Thread Size (Decimal Inch) | 0.245" |
| Thread Size (mm) | 6.22mm |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (mm) | 6.35mm |
| Thread Length (Decimal Inch) | 0.437" |
| Thread Length (mm) | 11.10mm |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (mm) | 63.50mm |
| Shank Type | Plain |
| Helix Angle (Degree) | 15 Degree |
| Number of Flutes | 3 |
| Coating | TiAIN |
| Material | Carbide |
| Application | P,K,N |
| Series | L621F |
| Cutting Direction | Right Hand |

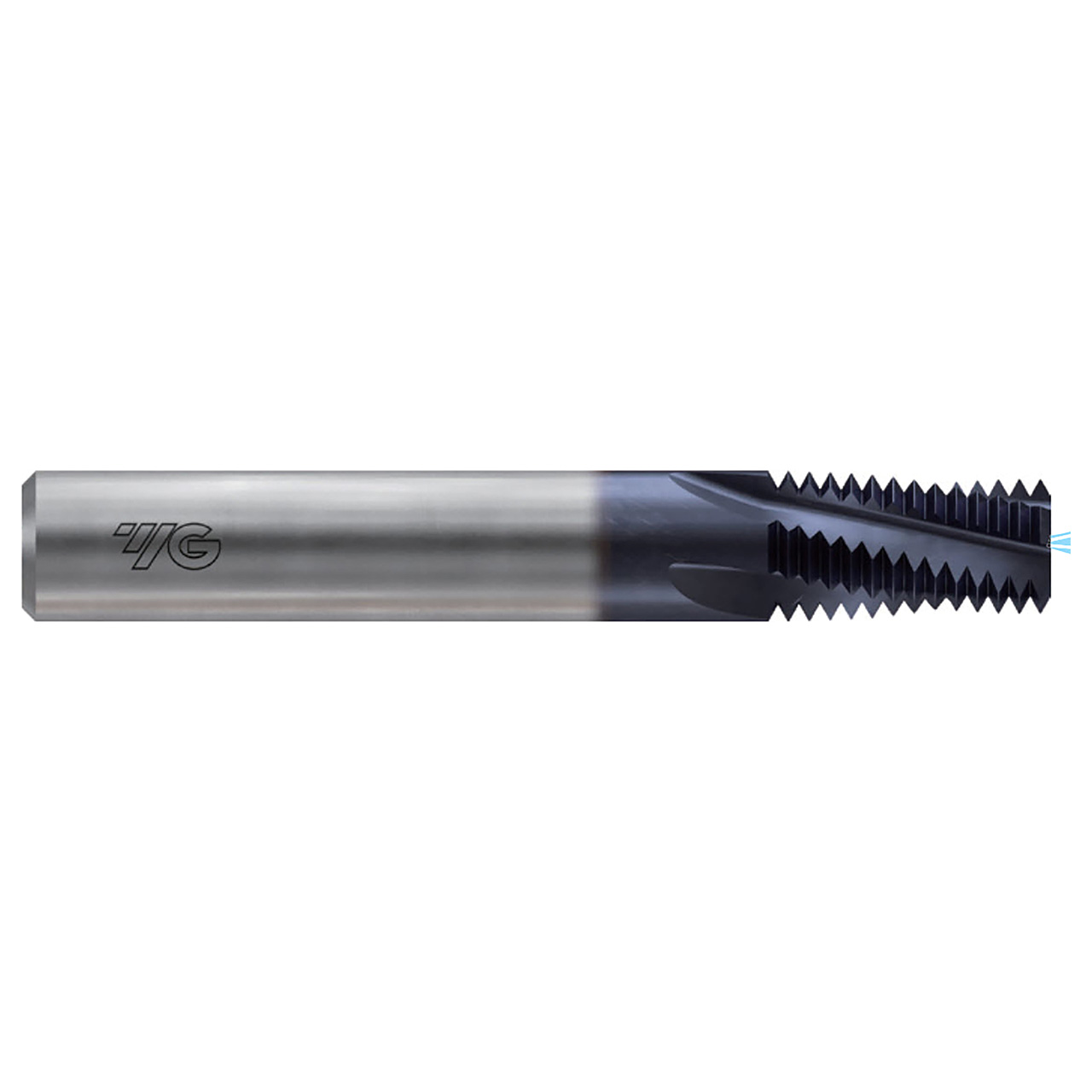

| Product Type | Helical Flute Thread Mill |
