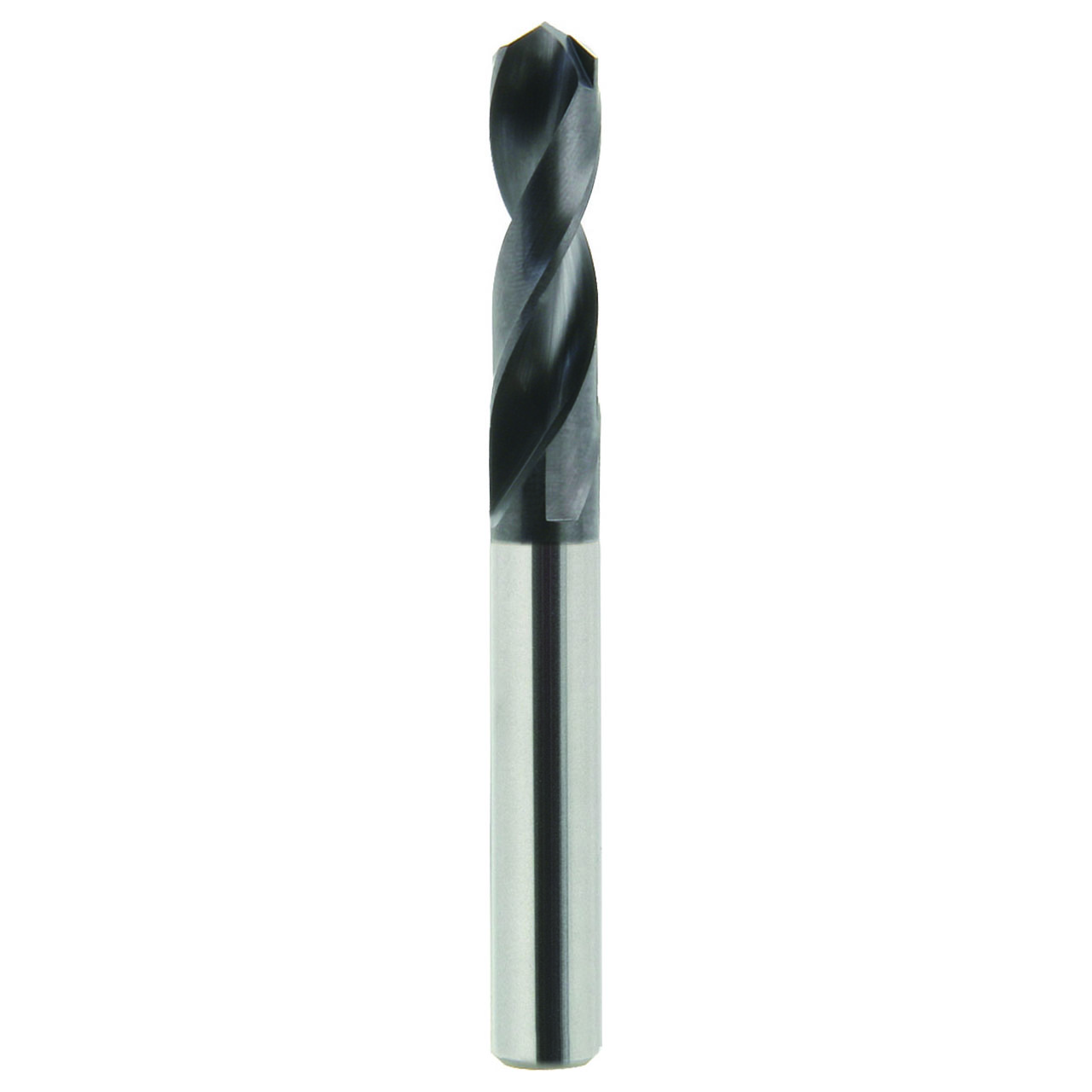

YG1 M16022 | #22 Diameter x 0.1875" Shank x 2.5000" OAL 2 Flute TiAlN Coated Premium HSS-PM Stub Drill

$20.36 $13.84
(You save $6.52)
Brand:
YG1
Drill Bit Size (Decimal Inch):
0.1570"
Drill Bit Size (mm):
3.99mm
Drill Bit Size (Wire):
#22
Flute Length (Inch):
1-1/16"
Flute Length (Decimal Inch):
1.0625"
Flute Length (mm):
26.99mm
Material:
Premium HSS-PM
Finish/Coating:
TiAlN
Coolant Through:
No
interval quantity:
1
SKU:
10031910
UPC:
Weight:
0.02 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
YG1 M16022 | #22 Diameter x 0.1875" Shank x 2.5000" OAL 2 Flute TiAlN Coated Premium HSS-PM Stub Drill

Product Specifications
Manufacturer Part NumberM16022
Diameter (Wire)#22
Diameter (Inch)8/51"
Diameter (Decimal Inch)0.1570"
Diameter (mm)3.99mm
Shank Diameter (Inch)3/16"
Shank Diameter (Decimal Inch)0.1875"
Shank Diameter (mm)4.76mm
Flute Length (Inch)1-1/16"
Flute Length (Decimal Inch)1.0625"
Flute Length (mm)26.99mm
Overall Length (Inch)2-1/2"
Overall Length (Decimal Inch)2.5000"
Overall Length (mm)63.50mm
Point Length (Decimal Inch)0.0325"
Point Length (mm)0.83mm
Number of Flutes2
Point Angle135 Degree
Helix Angle30 Degree
SeriesCDRA06
Shank Toleranceh6
Coolant ThroughNo
CoatingTiAlN
MaterialPremium HSS-PM
Hole Toleranceh7
ApplicationP,S
Cutting DirectionRight
Length TypeStub Length

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
