Product Specifications

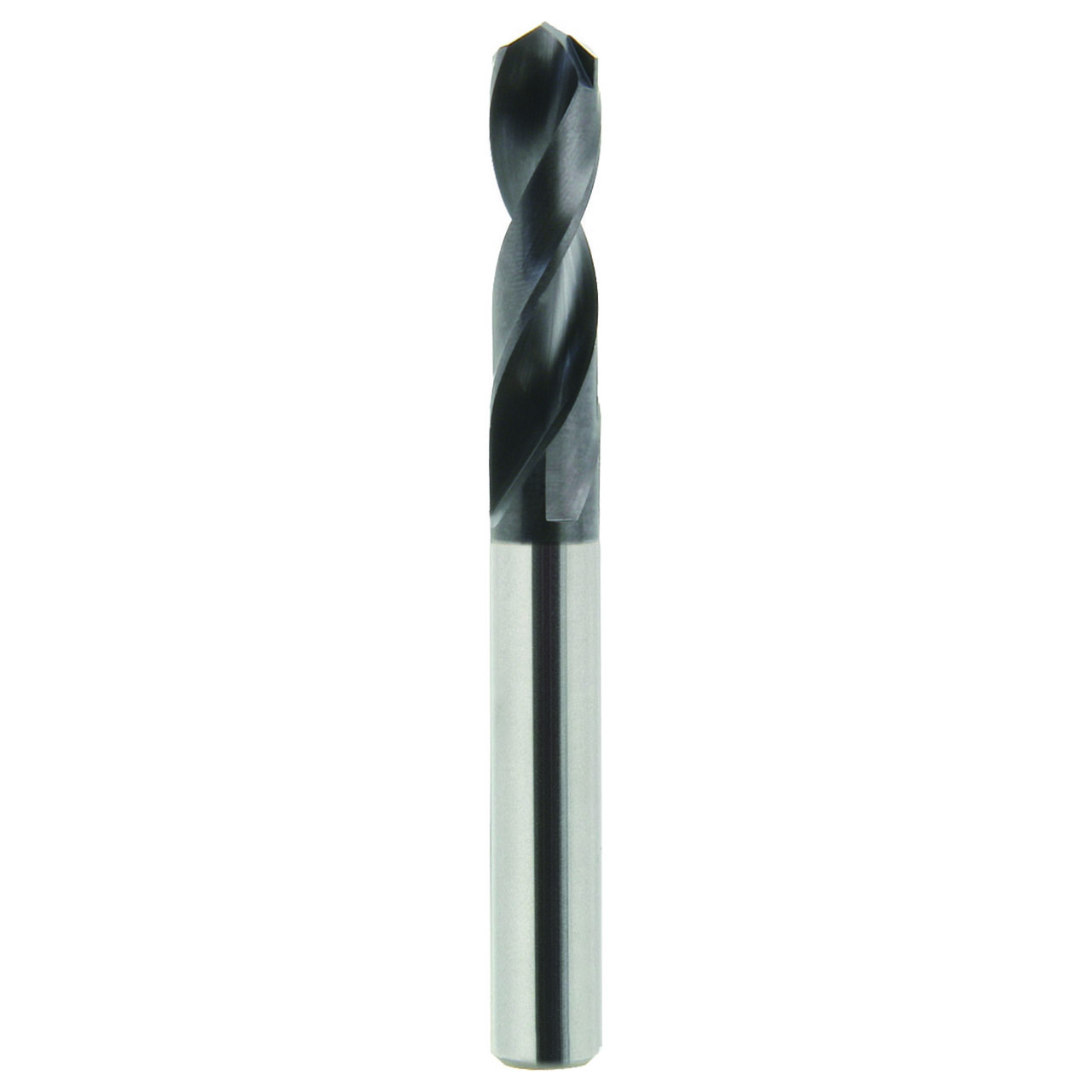

| Manufacturer Part Number | M16032 |
| Diameter (Wire) | #32 |
| Diameter (Inch) | 8/69" |
| Diameter (Decimal Inch) | 0.1160" |
| Diameter (mm) | 2.95mm |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (mm) | 3.18mm |
| Flute Length (Inch) | 7/8" |
| Flute Length (Decimal Inch) | 0.8750" |
| Flute Length (mm) | 22.23mm |
| Overall Length (Inch) | 2-5/16" |
| Overall Length (Decimal Inch) | 2.3125" |
| Overall Length (mm) | 58.74mm |
| Point Length (Decimal Inch) | 0.0240" |
| Point Length (mm) | 0.61mm |
| Number of Flutes | 2 |
| Point Angle | 135 Degree |
| Helix Angle | 30 Degree |
| Series | CDRA06 |
| Shank Tolerance | h6 |
| Coolant Through | No |
| Coating | TiAlN |
| Material | Premium HSS-PM |
| Hole Tolerance | h7 |
| Application | P,S |
| Cutting Direction | Right |
| Length Type | Stub Length |
