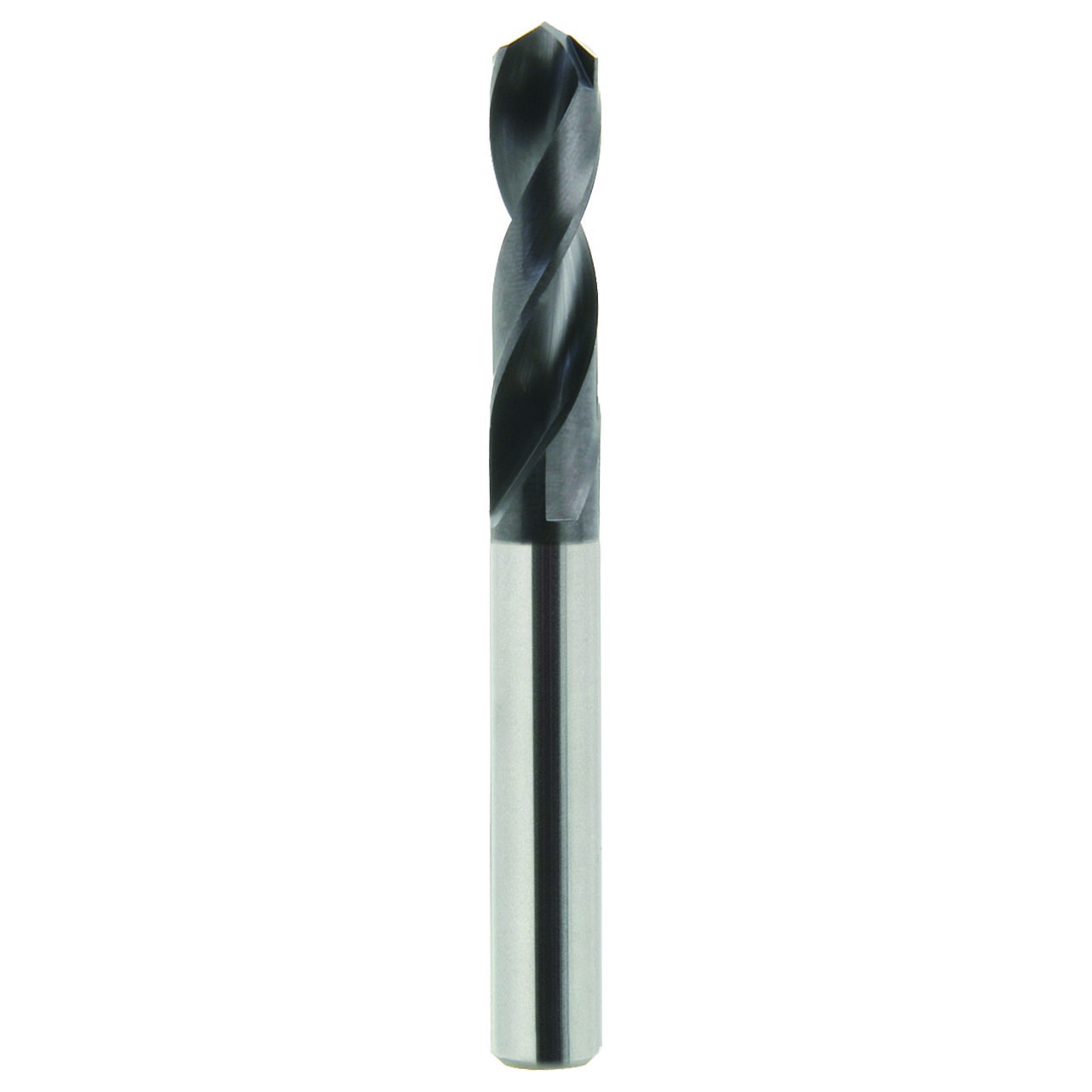

| Manufacturer Part Number | M1700C |
| Diameter (Letter) | 'C' |
| Diameter (Decimal Inch) | 0.2420" |
| Diameter (mm) | 6.15mm |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (mm) | 6.35mm |
| Flute Length (Decimal Inch) | 1.3750" |
| Flute Length (mm) | 34.93mm |
| Overall Length (Decimal Inch) | 3.1875" |
| Overall Length (mm) | 80.96mm |
| Point Length (Decimal Inch) | 0.0501" |
| Point Length (mm) | 1.27mm |
| Number of Flutes | 2 |
| Point Angle | 135 Degree |
| Helix Angle | 30 Degree |
| Series | CDRA07 |
| Shank Tolerance | h6 |
| Coolant Through | No |
| Coating | TiAlN |
| Material | Premium HSS-PM |
| Hole Tolerance | h7 |
| Application | P,S |
| Cutting Direction | Right |
| Length Type | Stub Length |
