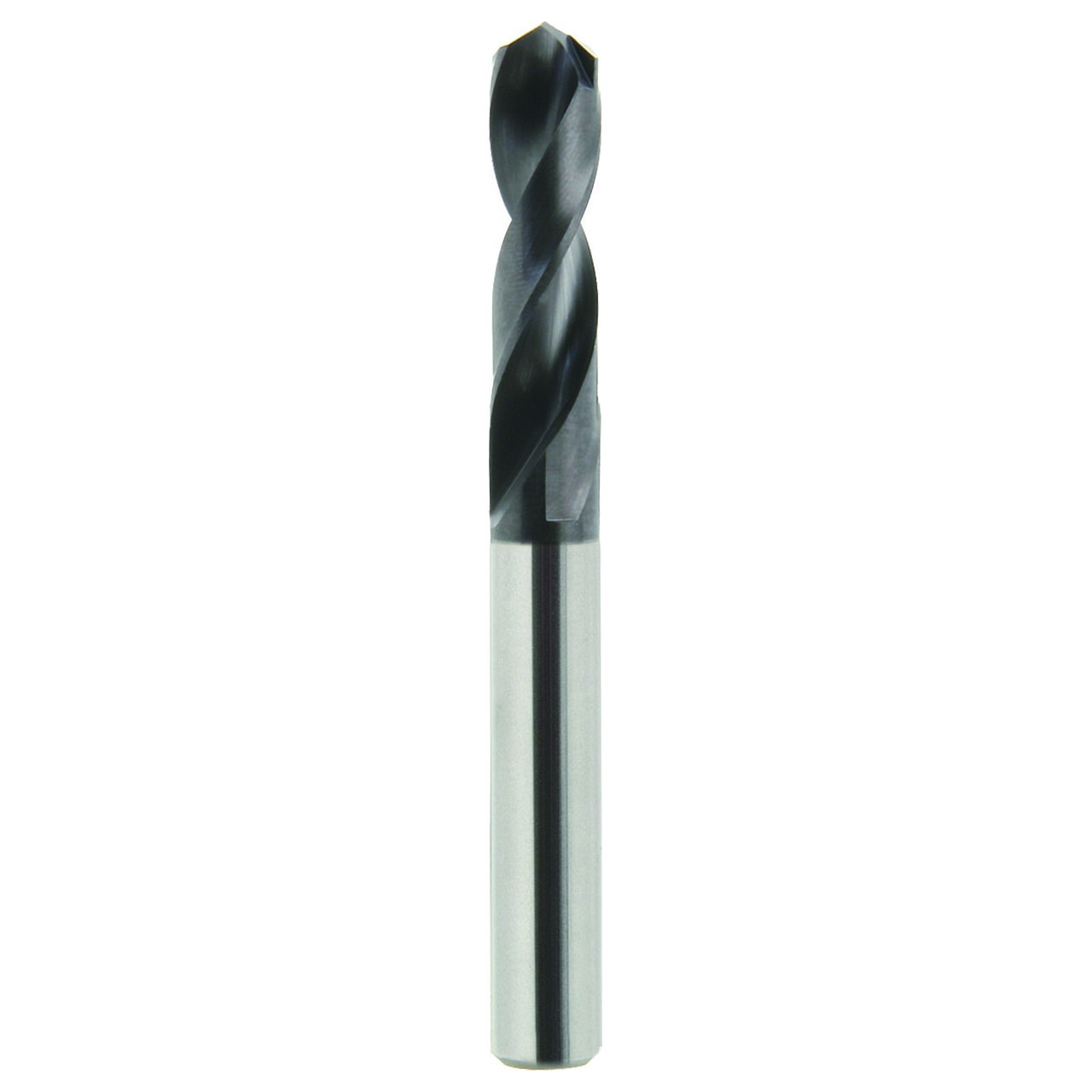

| Manufacturer Part Number | M1700N |
| Diameter (Letter) | 'N' |
| Diameter (Inch) | 16/53" |
| Diameter (Decimal Inch) | 0.3020" |
| Diameter (mm) | 7.67mm |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (mm) | 9.53mm |
| Flute Length (Inch) | 1-5/8" |
| Flute Length (Decimal Inch) | 1.6250" |
| Flute Length (mm) | 41.28mm |
| Overall Length (Inch) | 3-7/16" |
| Overall Length (Decimal Inch) | 3.4375" |
| Overall Length (mm) | 87.31mm |
| Point Length (Decimal Inch) | 0.0625" |
| Point Length (mm) | 1.59mm |
| Number of Flutes | 2 |
| Point Angle | 135 Degree |
| Helix Angle | 30 Degree |
| Series | CDRA07 |
| Shank Tolerance | h6 |
| Coolant Through | No |
| Coating | TiAlN |
| Material | Premium HSS-PM |
| Hole Tolerance | h7 |
| Application | P,S |
| Cutting Direction | Right |
| Length Type | Stub Length |
