| Manufacturer Part Number | N3224 |
| Thread Size | M3.50 |
| Thread Size (Decimal Inch) | 0.138" |
| Thread Size (mm) | 3.50mm |
| Pitch (mm) | 0.60mm |
| Thread Series | M |
| Pitch Limit | D4 |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Overall Length (Decimal Inch) | 2.205" |
| Overall Length (mm) | 56.01mm |
| Thread Length (Decimal Inch) | 0.413" |
| Thread Length (mm) | 10.49mm |
| Square Length (Decimal Inch) | 0.190" |
| Square Length (mm) | 4.83mm |
| Shank Diameter (Decimal Inch) | 0.141" |
| Shank Diameter (mm) | 3.58mm |
| Square Size (Decimal Inch) | 0.110" |
| Square Size (mm) | 2.79mm |
| Neck Diameter (Decimal Inch) | 0.104" |
| Neck Diameter (mm) | 2.64mm |
| Neck Length (Decimal Inch) | 0.709" |
| Neck Length (mm) | 18.01mm |
| Shank Type | Square |
| Drill Size (Decimal Inch) | 0.116" |
| Drill Size (mm) | 2.95mm |
| Connection Size (Decimal Inch) | 0.141" x 0.110" |
| Connection Size (mm) | 3.58 x 2.79mm |
| Length / Diameter | 3.0 X D |
| Usable Length (Decimal Inch) | 0.646" |
| Usable Length (mm) | 16.41mm |
| Ring Color | Blue Ring |
| Number of Flutes | 3 |
| Coating | Steam Oxide |
| Material | HSS-PM |
| Blank Standard | DIN/ANSI |

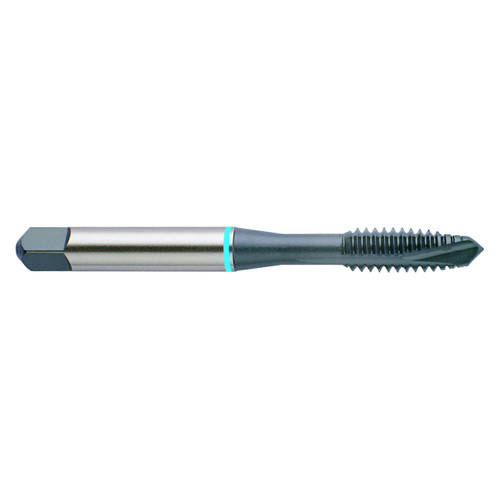

| Product Type | Spiral Point Tap |
