Product Specifications
| Manufacturer Part Number | O1245 |
| Thread Size | #6 |
| Thread Size (Decimal Inch) | 0.138" |
| Thread Size (mm) | 3.51mm |
| Threads per Inch (TPI) | 32 |
| Thread Series | UNC |
| Pitch Limit | H5 |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Overall Length (Decimal Inch) | 2.000" |
| Overall Length (mm) | 50.80mm |
| Thread Length (Decimal Inch) | 0.413" |
| Thread Length (mm) | 10.49mm |
| Square Length (Decimal Inch) | 0.190" |
| Square Length (mm) | 4.83mm |
| Shank Diameter (Decimal Inch) | 0.141" |
| Shank Diameter (mm) | 3.58mm |
| Square Size (Decimal Inch) | 0.110" |
| Square Size (mm) | 2.79mm |
| Neck Diameter (Decimal Inch) | 0.094" |
| Neck Diameter (mm) | 2.39mm |
| Neck Length (Decimal Inch) | 0.689" |
| Neck Length (mm) | 17.50mm |
| Shank Type | Square |
| Drill Size (Decimal Inch) | 0.110" |
| Drill Size (mm) | 2.78mm |
| Connection Size (Decimal Inch) | 0.141" x 0.110" |
| Connection Size (mm) | 3.58 x 2.79mm |
| Length / Diameter | 3.0 X D |
| Usable Length (Decimal Inch) | 0.689" |
| Usable Length (mm) | 17.50mm |
| Ring Color | Blue Ring |
| Number of Flutes | 3 |
| Coating | Hardslick |
| Material | HSS-PM |
| Blank Standard | 302A |

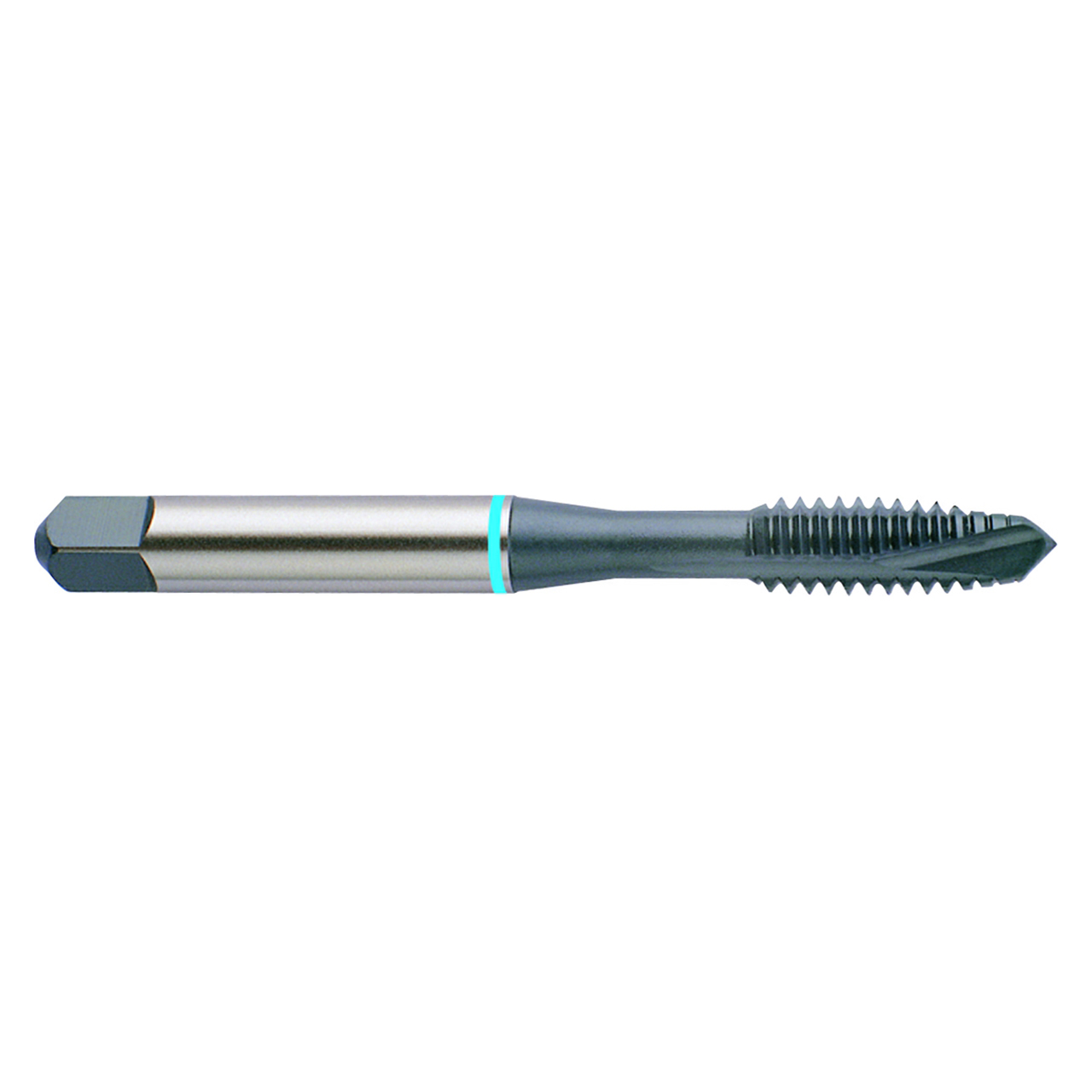

| Product Type | Spiral Flute Tap |
