Product Specifications
| Manufacturer Part Number | O5545 |
| Thread Size (Inch) | 7/16" |
| Thread Size (Decimal Inch) | 0.438" |
| Thread Size (mm) | 11.11mm |
| Threads per Inch (TPI) | 20 |
| Thread Series | UNF |
| Pitch Limit | H5 |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Overall Length (Decimal Inch) | 3.937" |
| Overall Length (mm) | 100.00mm |
| Thread Length (Decimal Inch) | 0.866" |
| Thread Length (mm) | 22.00mm |
| Square Length (Decimal Inch) | 0.410" |
| Square Length (mm) | 10.41mm |
| Shank Diameter (Decimal Inch) | 0.323" |
| Shank Diameter (mm) | 8.20mm |
| Square Size (Decimal Inch) | 0.242" |
| Square Size (mm) | 6.15mm |
| Neck Diameter (Decimal Inch) | 0.311" |
| Neck Diameter (mm) | 7.90mm |
| Neck Length (Decimal Inch) | 1.437" |
| Neck Length (mm) | 36.50mm |
| Shank Type | Square |
| Drill Size (Decimal Inch) | 0.392" |
| Drill Size (mm) | 9.96mm |
| Connection Size (Decimal Inch) | 0.323" x 0.242" |
| Connection Size (mm) | 8.20 x 6.15mm |
| Length / Diameter | 3.0 X D |
| Usable Length (Decimal Inch) | 1.437" |
| Usable Length (mm) | 36.50mm |
| Ring Color | Blue Ring |
| Number of Flutes | 3 |
| Coating | Hardslick |
| Material | HSS-PM |
| Blank Standard | DIN/ANSI |

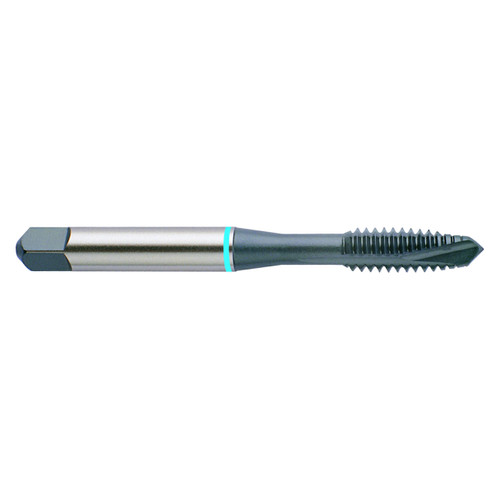

| Product Type | Spiral Flute Tap |
