| Manufacturer Part Number | P01253 |
| Min. Insert Diameter (Decimal Inch) | 1.1875" |
| Min.-Insert-Diameter-(Inch) | 1-3/16" |
| Min. Insert Diameter (mm) | 30.16mm |
| Max. Insert Diameter (Decimal Inch) | 1.3750" |
| Max. Insert Diameter (Inch) | 1-3/8" |
| Max. Insert Diameter (mm) | 34.93mm |
| Max Drill Depth (Decimal Inch) | 3.3800" |
| Max Drill Depth (Inch) | 3-3/8" |
| Max Drill Depth (mm) | 85.73mm |
| Flute Length (Decimal Inch) | 4.5000" |
| Flute Length (Inch) | 4-1/2" |
| Flute Length (mm) | 114.30mm |
| Overall Length (Decimal Inch) | 9.7800" |
| Overall Length (Inch) | 9-25/32" |
| Overall Length (mm) | 248.44mm |
| Reference Length (Decimal Inch) | 6.2300" |
| Reference Length (Decimal Inch) | 6-15/64" |
| Reference Length (Decimal Inch) | 158.35mm |
| Pipe Tap (Inch) | 1/8" |
| Morse Taper | #3 |
| Number of Flute | 2 |
| Coating | Oxide |
| Material | Steel |
| Cutting Direction | Right |

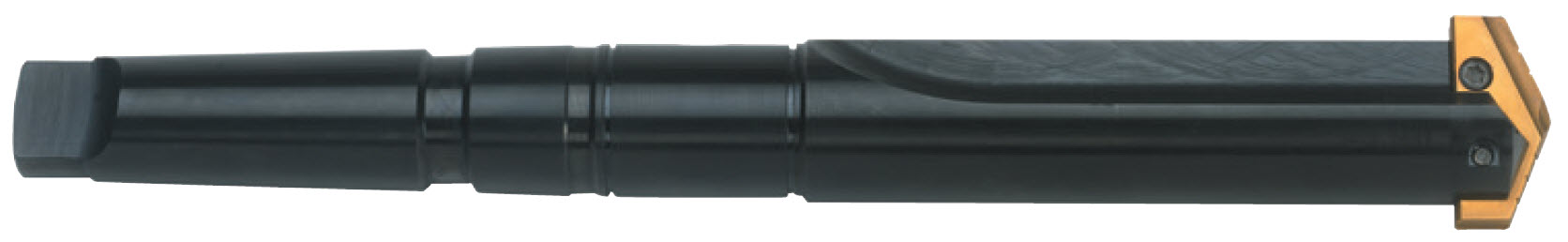

| Product Type | Spade Drill Holder |
