| Manufacturer Part Number | P01305 |
| Min. Insert Diameter (Decimal Inch) | 1.4063" |
| Min.-Insert-Diameter-(Inch) | 1-13/32" |
| Min. Insert Diameter (mm) | 35.72mm |
| Max. Insert Diameter (Decimal Inch) | 1.8750" |
| Max. Insert Diameter (Inch) | 1-7/8" |
| Max. Insert Diameter (mm) | 47.63mm |
| Max Drill Depth (Decimal Inch) | 4.7500" |
| Max Drill Depth (Inch) | 4-3/4" |
| Max Drill Depth (mm) | 120.65mm |
| Flute Length (Decimal Inch) | 6.0000" |
| Flute Length (Inch) | 6" |
| Flute Length (mm) | 152.40mm |
| Overall Length (Decimal Inch) | 13.8100" |
| Overall Length (Inch) | 13-13/16" |
| Overall Length (mm) | 350.84mm |
| Reference Length (Decimal Inch) | 8.1300" |
| Reference Length (Decimal Inch) | 8-1/8" |
| Reference Length (Decimal Inch) | 206.38mm |
| Pipe Tap (Inch) | 1/4" |
| Morse Taper | #5 |
| Number of Flute | 2 |
| Coating | Oxide |
| Material | Steel |
| Cutting Direction | Right |

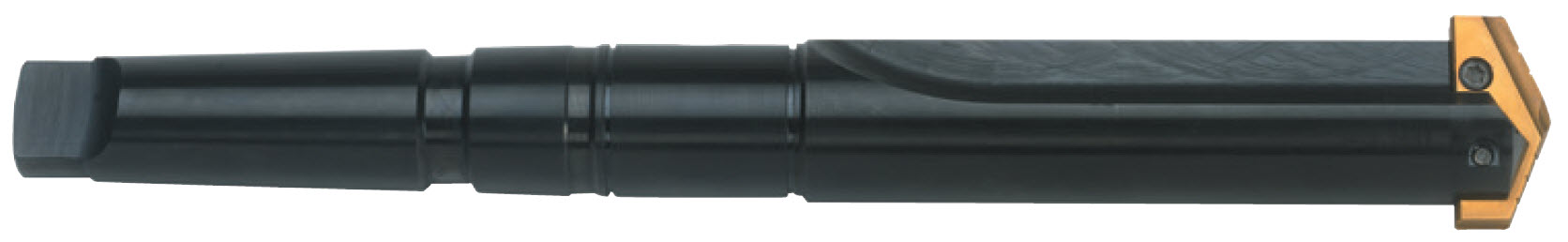

| Product Type | Spade Drill Holder |
