Product Specifications
| # Manufacturer Number | P01Y02 |
| Min. Insert Diameter (Decimal Inch) | 0.3750" |
| Min.-Insert-Diameter-(Inch) | 3/8" |
| Min. Insert Diameter (mm) | 9.53mm |
| Max. Insert Diameter (Decimal Inch) | 0.4219" |
| Max. Insert Diameter (Inch) | 27/64" |
| Max. Insert Diameter (mm) | 10.72mm |
| Max Drill Depth (Decimal Inch) | 1.2500" |
| Max Drill Depth (Inch) | 1-1/4" |
| Max Drill Depth (mm) | 31.75mm |
| Flute Length (Decimal Inch) | 2.0300" |
| Flute Length (Inch) | 2-1/32" |
| Flute Length (mm) | 51.59mm |
| Overall Length (Decimal Inch) | 6.3100" |
| Overall Length (Inch) | 6-5/16" |
| Overall Length (mm) | 160.34mm |
| Reference Length (Decimal Inch) | 3.4700" |
| Reference Length (Decimal Inch) | 3-15/32" |
| Reference Length (Decimal Inch) | 88.11mm |
| Pipe Tap (Inch) | 1/16" |
| Morse Taper | #2 |
| Number of Flute | 2 |
| Coating | Oxide |
| Material | Steel |
| Cutting Direction | Right |

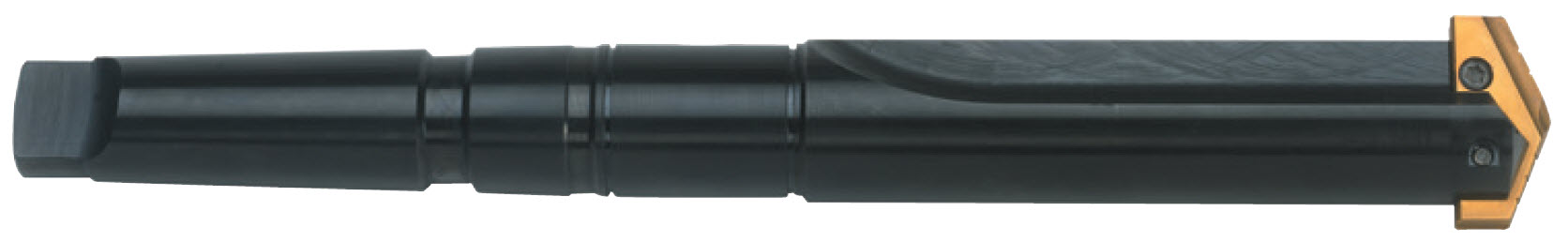

| Product Type | Spade Drill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Series:
P01
Minimum Drill Diameter (Inch):
0.3750";Minimum Drill Diameter (Decimal Inch)=3/8"""""
Minimum Drill Diameter (mm):
9.53mm
Maximum Drill Diameter (Inch):
0.4219";Maximum Drill Diameter (Decimal Inch)=27/64"""""
Maximum Drill Diameter (mm):
10.72mm
Overall Length (Inch):
6-5/16";Overall Length (Decimal Inch)=6.3100"""""
Overall Length (mm):
6.3100";Maximum Drill Depth (Inch)=1-1/4"""""
Maximum Drill Depth (Decimal Inch):
1.2500";Maximum Drill Depth (mm)=31.75mm"""
Flute Type:
Straight
Shank Type:
Morse Taper
Material:
Steel
Finish/Coating:
Oxide
interval quantity:
1
