Product Specifications
| # Manufacturer Number | P03405 |
| Min. Insert Diameter (Decimal Inch) | 1.9063" |
| Min.-Insert-Diameter-(Inch) | 1-29/32" |
| Min. Insert Diameter (mm) | 48.42mm |
| Max. Insert Diameter (Decimal Inch) | 2.5625" |
| Max. Insert Diameter (Inch) | 2-9/16" |
| Max. Insert Diameter (mm) | 65.09mm |
| Max Drill Depth (Decimal Inch) | 9.1300" |
| Max Drill Depth (Inch) | 9-1/8" |
| Max Drill Depth (mm) | 231.78mm |
| Flute Length (Decimal Inch) | 10.5000" |
| Flute Length (Inch) | 10-1/2" |
| Flute Length (mm) | 266.70mm |
| Overall Length (Decimal Inch) | 18.3100" |
| Overall Length (Inch) | 18-5/16" |
| Overall Length (mm) | 465.14mm |
| Reference Length (Decimal Inch) | 12.6300" |
| Reference Length (Decimal Inch) | 12-5/8" |
| Reference Length (Decimal Inch) | 320.68mm |
| Pipe Tap (Inch) | 1/4" |
| Morse Taper | #5 |
| Number of Flute | 2 |
| Coating | Oxide |
| Material | Steel |
| Cutting Direction | Right |

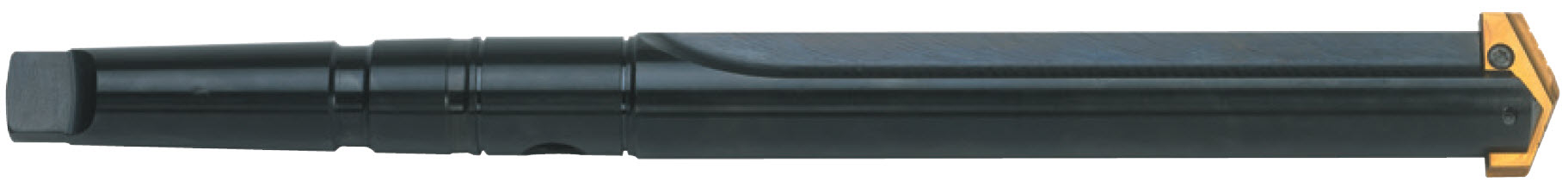

| Product Type | Spade Drill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Series:
P03
Minimum Drill Diameter (Inch):
1.9063";Minimum Drill Diameter (Decimal Inch)=1 29/32"""""
Minimum Drill Diameter (mm):
48.42mm
Maximum Drill Diameter (Inch):
2.5625";Maximum Drill Diameter (Decimal Inch)=2-9/16"""""
Maximum Drill Diameter (mm):
65.09mm
Overall Length (Inch):
18-5/16";Overall Length (Decimal Inch)=18.3100"""""
Overall Length (mm):
18.3100";Maximum Drill Depth (Inch)=9-1/8"""""
Maximum Drill Depth (Decimal Inch):
9.1300";Maximum Drill Depth (mm)=231.78mm"""
Flute Type:
Straight
Shank Type:
Morse Taper
Material:
Steel
Finish/Coating:
Oxide
interval quantity:
1
