Product Specifications
| # Manufacturer Number | P03505 |
| Min. Insert Diameter (Decimal Inch) | 2.5000" |
| Min.-Insert-Diameter-(Inch) | 2-1/2" |
| Min. Insert Diameter (mm) | 63.50mm |
| Max. Insert Diameter (Decimal Inch) | 3.5000" |
| Max. Insert Diameter (Inch) | 3-1/2" |
| Max. Insert Diameter (mm) | 88.90mm |
| Max Drill Depth (Decimal Inch) | 10.7500" |
| Max Drill Depth (Inch) | 10-3/4" |
| Max Drill Depth (mm) | 273.05mm |
| Flute Length (Decimal Inch) | 12.5000" |
| Flute Length (Inch) | 12-1/2" |
| Flute Length (mm) | 317.50mm |
| Overall Length (Decimal Inch) | 20.9400" |
| Overall Length (Inch) | 20-15/16" |
| Overall Length (mm) | 531.81mm |
| Reference Length (Decimal Inch) | 15.3100" |
| Reference Length (Decimal Inch) | 15-5/16" |
| Reference Length (Decimal Inch) | 388.94mm |
| Pipe Tap (Inch) | 1/2" |
| Morse Taper | #5 |
| Number of Flute | 2 |
| Coating | Oxide |
| Material | Steel |
| Cutting Direction | Right |

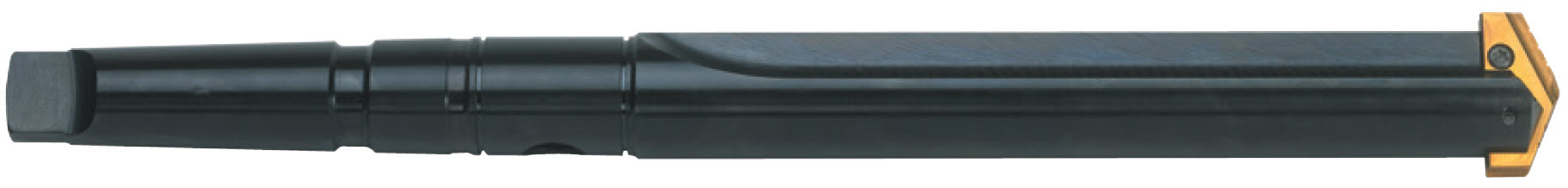

| Product Type | Spade Drill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Series:
P03
Minimum Drill Diameter (Inch):
2.5000"
Minimum Drill Diameter (Decimal Inch):
2 1/2"""
Minimum Drill Diameter (mm):
63.50mm
Maximum Drill Diameter (Inch):
3.5000"
Maximum Drill Diameter (Decimal Inch):
3-1/2"""
Maximum Drill Diameter (mm):
88.90mm
Overall Length (Inch):
20-15/16"
Overall Length (Decimal Inch):
20.9400"""
Overall Length (mm):
20.9400"
Maximum Drill Depth (Inch):
10-3/4"""
Maximum Drill Depth (Decimal Inch):
10.7500"
Maximum Drill Depth (mm):
273.05mm"
Flute Type:
Straight
Shank Type:
Morse Taper
Material:
Steel
Finish/Coating:
Oxide
